Product Description

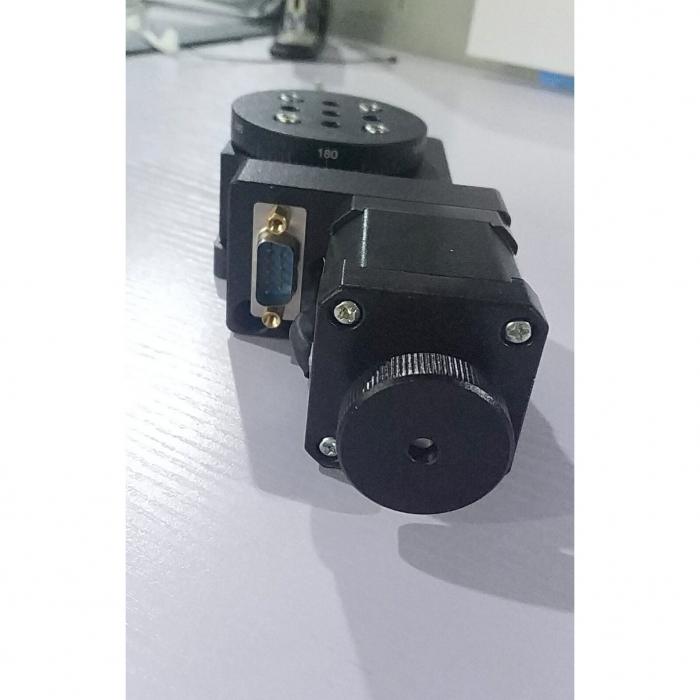

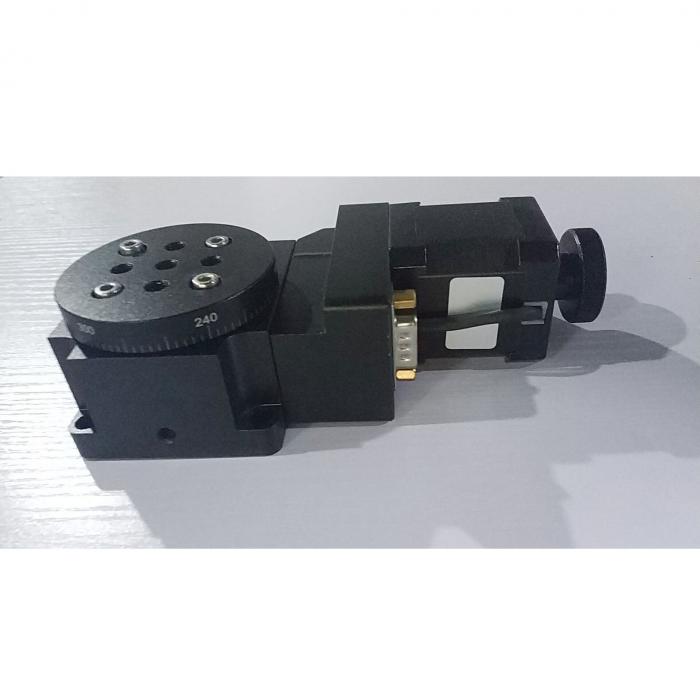

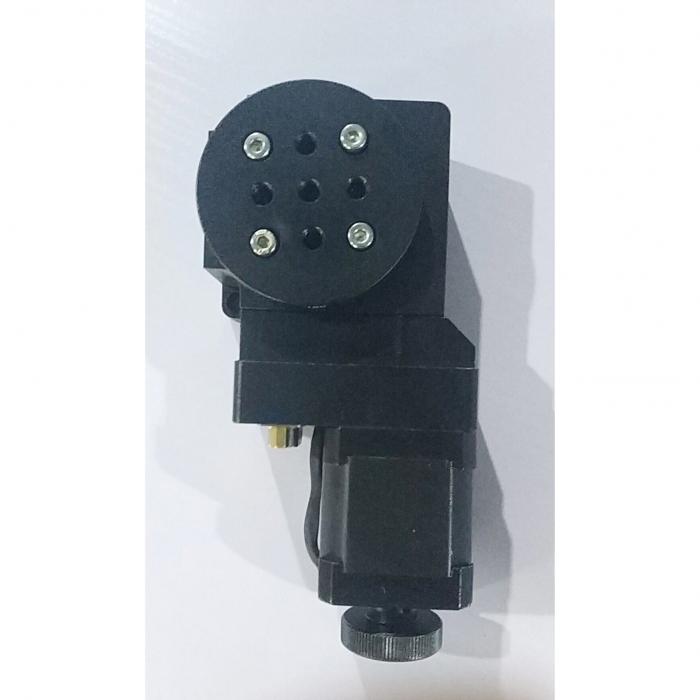

Mini Motorized Rotary Stage(diameter 60mm)



Feature

*Regular rotary stage set with stepper motor and RS232 interface, could connect with motion controller easily

*High precision rotary stage Worm gear design for high accuracy, loading and long working time.

*Forward and reverse rotate are possible

*The rotary stage could use in vertical and assemble with other stages

*60mm diameter dimension for this rotary stage but without through hole

*The regular rotary stage without limit switch and home position, but can add according to requirements



Item Number

J01DX60

Angle Range

360°

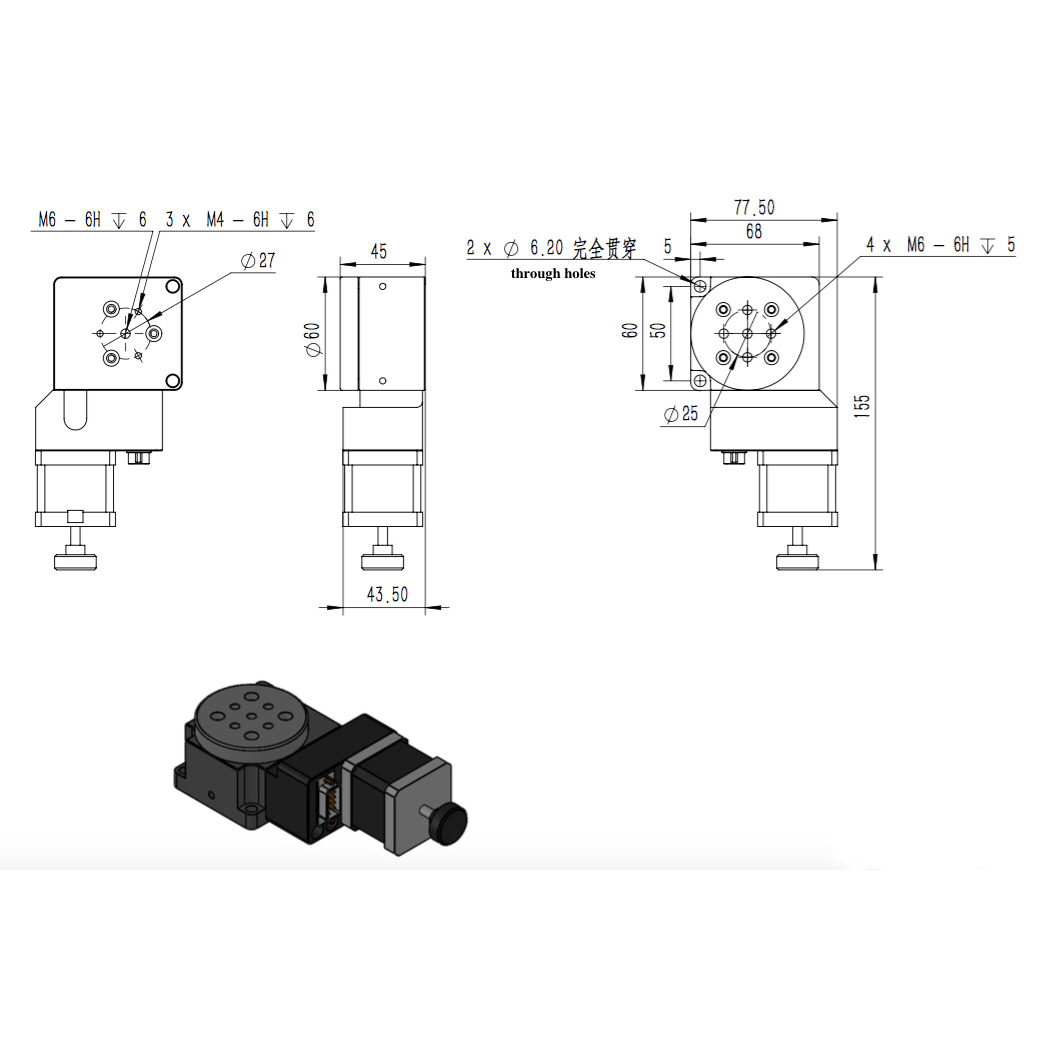

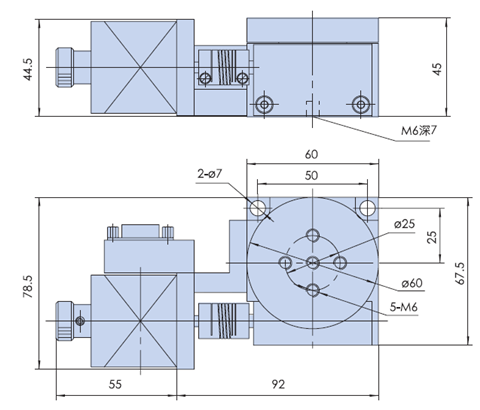

Dimension

diameter 60mm

Worm Gear Ratio

90:1

Drive Mechanism

Worm Gear

Guide

Bearing

Stepper Motor(1.8°)

SST4202121

Material

Aluminum

Surface Treatment

Black- Anodized

Loading

30kg

Weight

1.2kg

Resolution

0.02° non-driver

0.0025° 8 MS driver

Speed

25°/sec

Repeatability

0.005°

Accuracy

0.01°

Run Out of Top

15μm

Backlash

0.005°

Eccentricity

5μm

Degree of Parallelization

80μm
