Product Description

Heavy Loading Motorized Rotary Stage (diameter 200mm with 90mm through hole)



Feature

*Regular rotary stage set with stepper motor and RS232 interface, could connect with motion controller easily

*High precision rotary stage's Worm gear design for high accuracy, loading and long working time.

*Forward and reverse rotate are possible

*The rotary stage could use in vertical and assemble with other stages

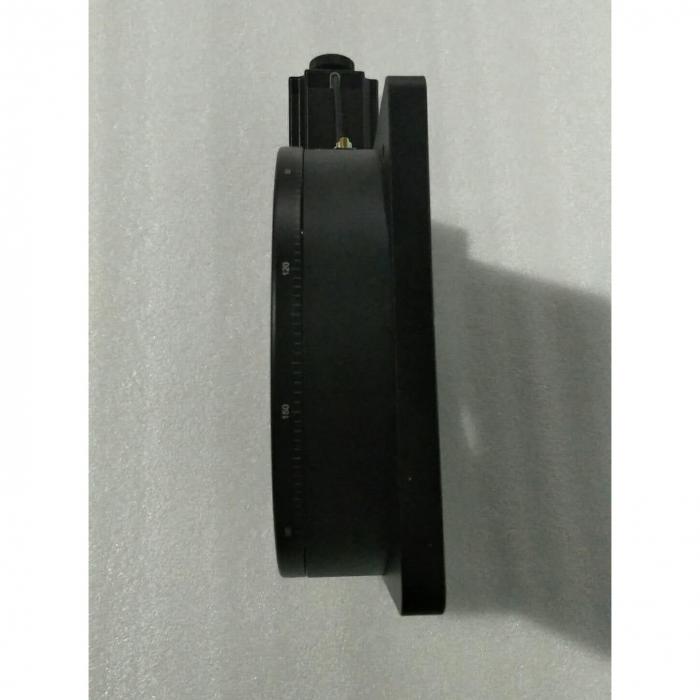

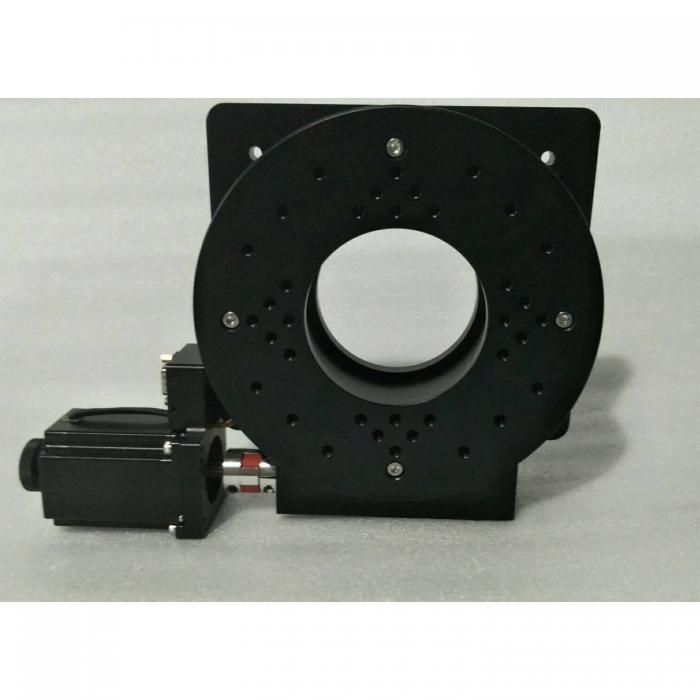

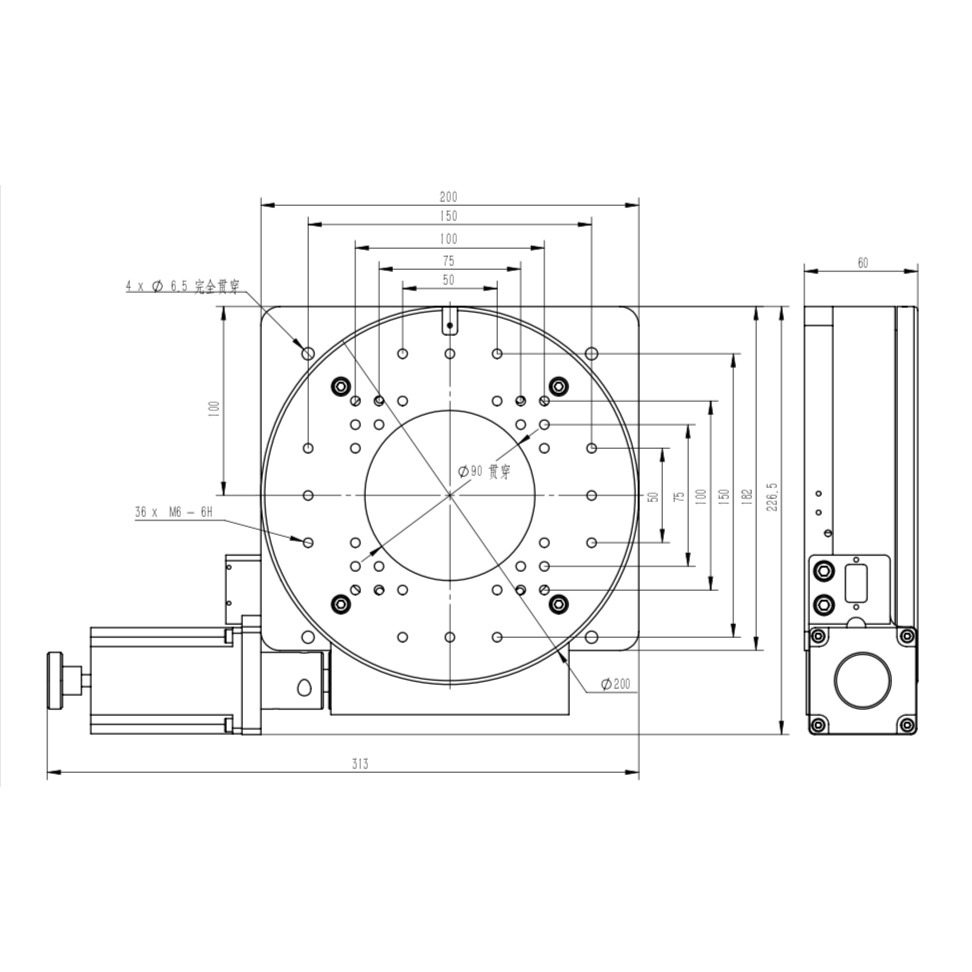

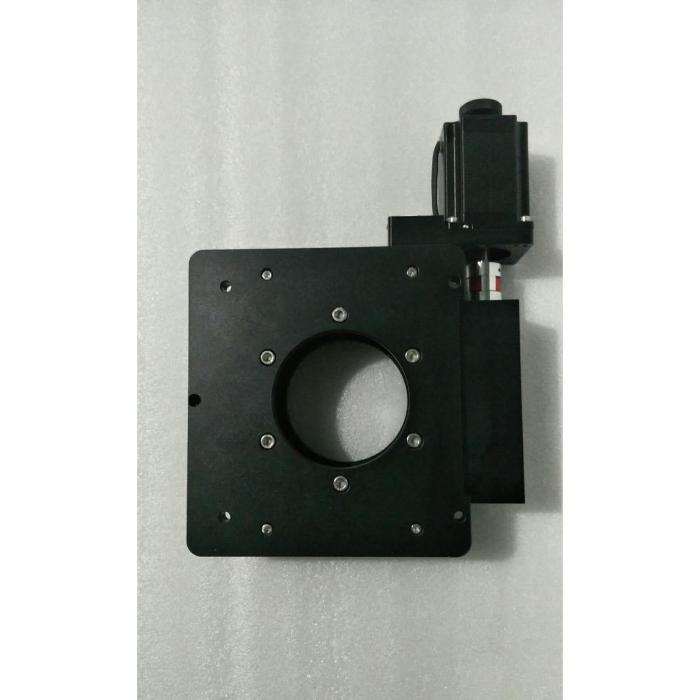

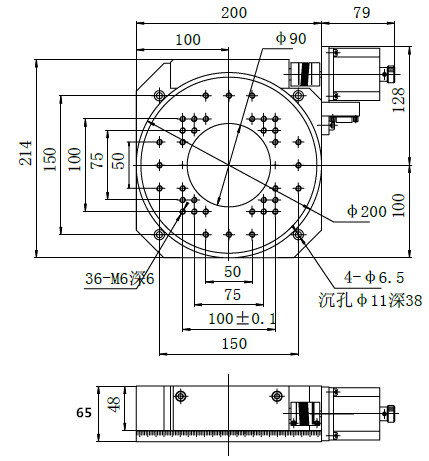

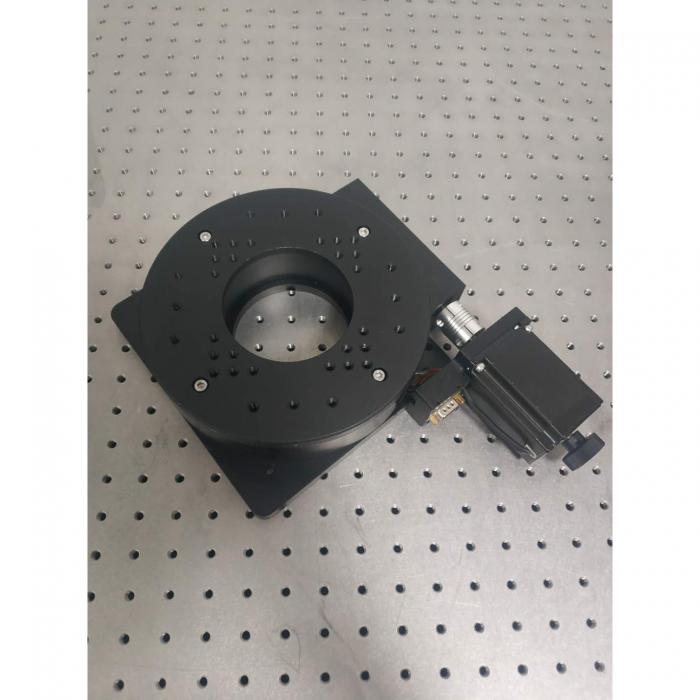

*200mm diameter rotary stage dimension and with diameter 90mm through hole.

*The regular rotary stage without limit switch and home position, but can add according to requirements



Item Number

J03DX200

Angle Range

360°

Dimension

diameter 90mm

Worm Gear Ratio

180:1

Drive Mechanism

Worm Gear

Guide

Bearing

Stepper Motor(1.8°)

SST57D3301

Material

Aluminum

Surface Treatment

Black- Anodized

Loading

55kg

Weight

7.9kg

Resolution

0.01° non-driver

0.00125° 8 MS driver

Speed

20°/sec

Repeatability

0.005°

Accuracy

0.01°

Run Out of Top

15μm

Backlash

0.005°

Eccentricity

5μm

Degree of Parallelization

80μm
