Name:Normal Motorized XYZ Rotary Stages: J3WDX200-100

Product Description

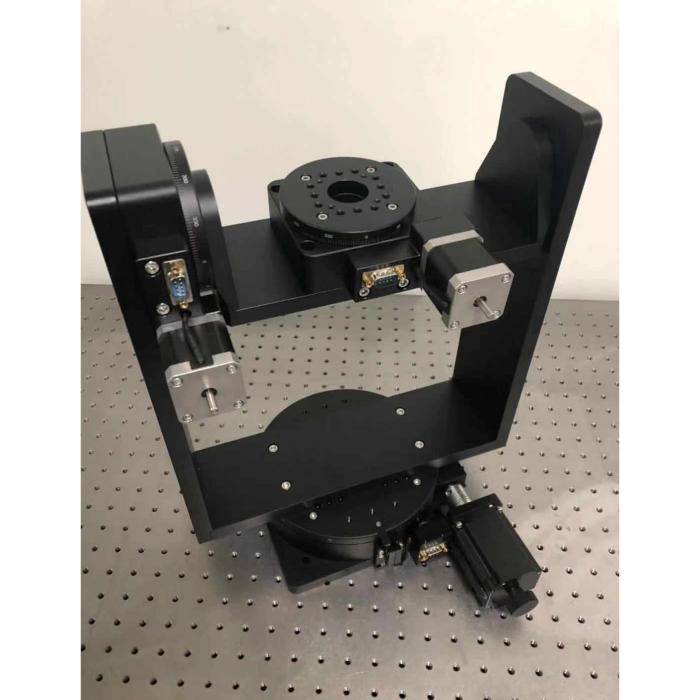

Normal XYZ Motorized Rotary Stages



The xyz rotary stage is used to position specimens and sensors in 3D space for simulation and calibration.

This custom motion system is built with standard rotation stages and provides a high-performance and high-accuracy positioning by the motors.

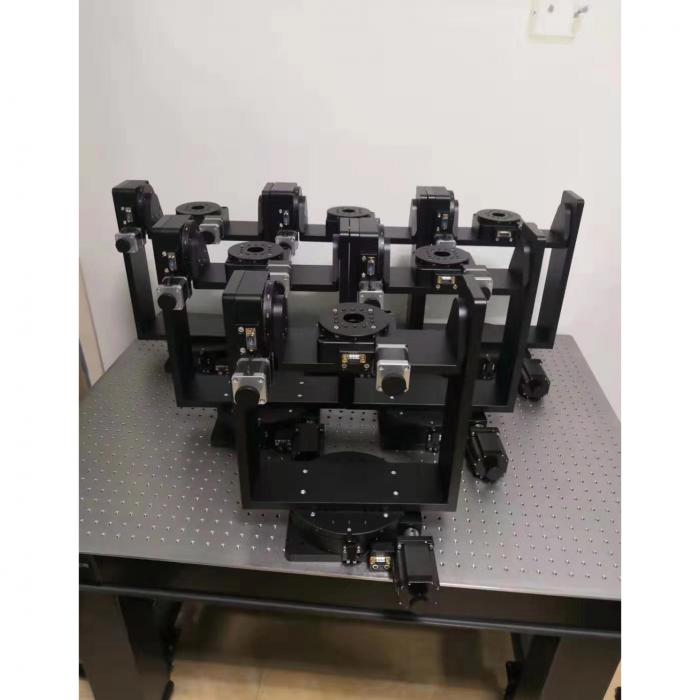

If you require the 360°of continuous rotation, the motion system must be designed by slip ring, like the picture showed below.

It will achieve the 360°continuous rotation for all three axes.



Model Number

J3WDX200-100

Angle Range

360°for X, Y, Z axis

Worm Gear Ratio

180:1

Driver

Worm Gear

Guide

Bearing

Stepper Motor(1.8°)

57 and 42

Material

Aluminum

Surface Treatment

Black-anodized

Loading

10kg

Weight

12kg

Resolution

0.01°, Non-MS driver

0.0005°, 20MS driver

Speed

20°/sec

Repeatability

0.005°

Run-out of top plate

15μm

Backlash

0.005°
