Product Description

Manual Goniometer Stage, Angle Range +/-10°



Production Feature:



*The goniometer stage can rotate in small angle

*Dovetail guide design for goniometer stage high loading and accuracy

*The goniometer stage rotation center will be same when it use together with J02SJ10

*Wheel screw can fix the goniometer stage position

*The goniometer stage with regular holes for combine with other products easily



Model Number

J01SJ10

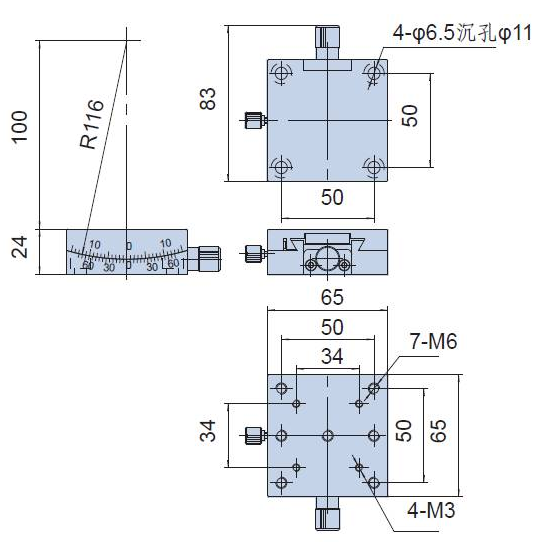

Dimension

65mm x 65 mm

Angle Range

+/-10°

Height of Rotary Center

100 mm

Deviation of Rotary Center

0.1 mm

Drive

Worm Gear

Guide

Dovetail Guide

Position of Drive

In center

Min Scale

Min Reading

5’

Min Adjustment

30”

Deflection

200”

Tilt

200”

Loading

6kg

Weight

0.46kg

Material

Aluminum

Surface Treatment

Black-Anodized
