Name:Motorized Lab Jack: J04DS10

Product Description

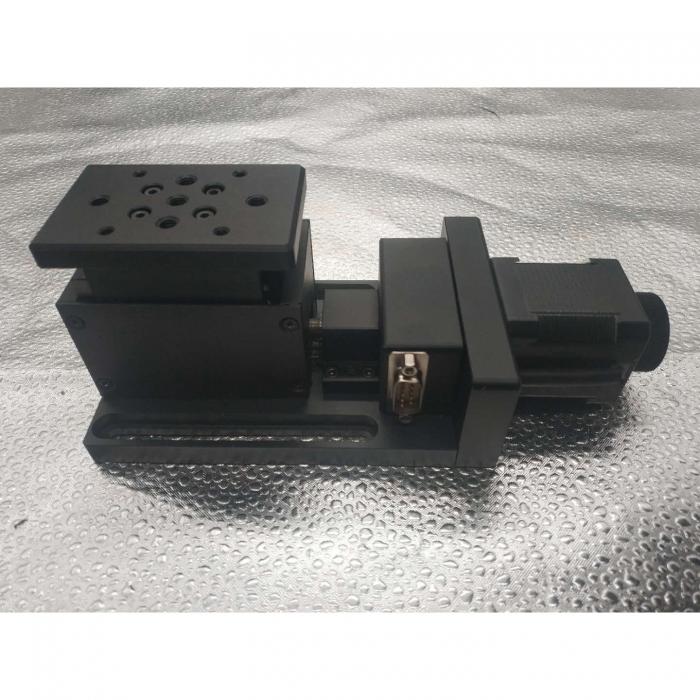

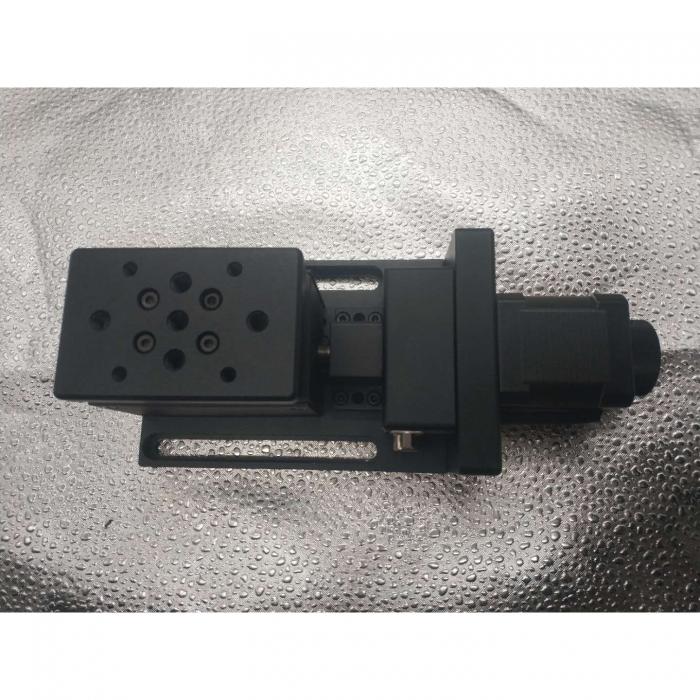

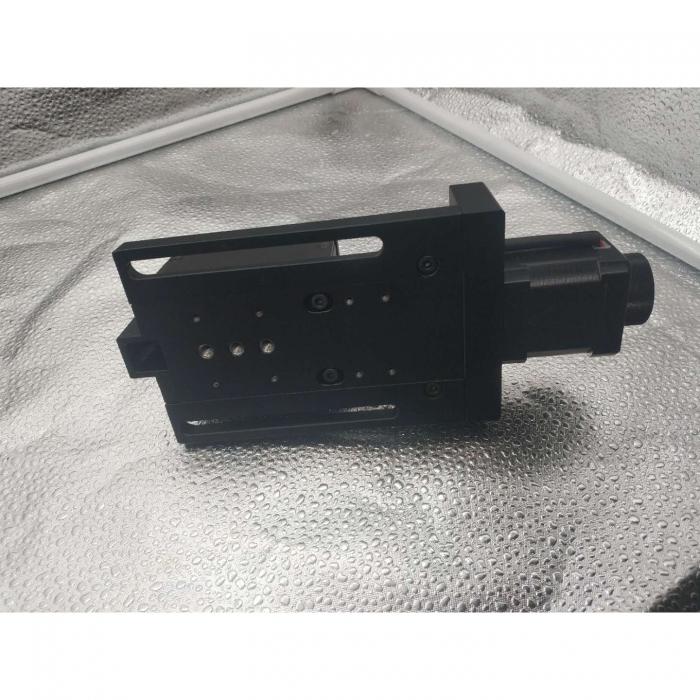

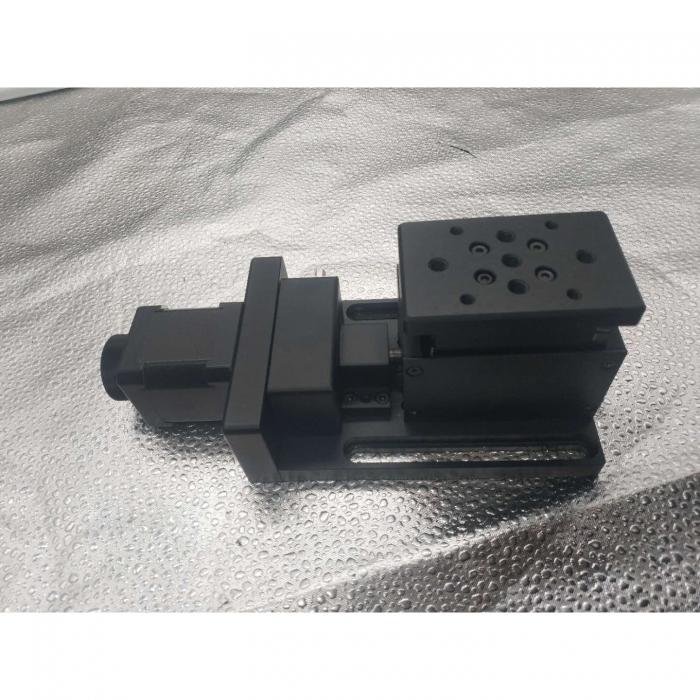

Motorized Lab Jack, Travel 10mm



Features:



*Regular lab jack set with stepper motors and RS232 interfaces, can connect with motion controller conveniently.

*High accuracy cross-roller guide for lab jack high performance and smooth moving

*Mounting holes both on the lab jack top and bottom of table for combine with other stages easily

*The lab jack can be redesigned.



Model  Number

J04DS10

Travel

10mm

Dimension

50mmx74mm

Driver

Ball  Screw

Guide

Sliding  Guide

Stepper  Motor1.8°

SST42D2121

Material

Aluminum

Surface  Treatment

Black-Anodized

Loading

10kg

Weight

1.5kg

Min  Adjustment

5μmnon-MS drive

0.25μm20-MS drive

Max  Speed

5mm/sec

Repeatability

7μm

Backlash

3μm

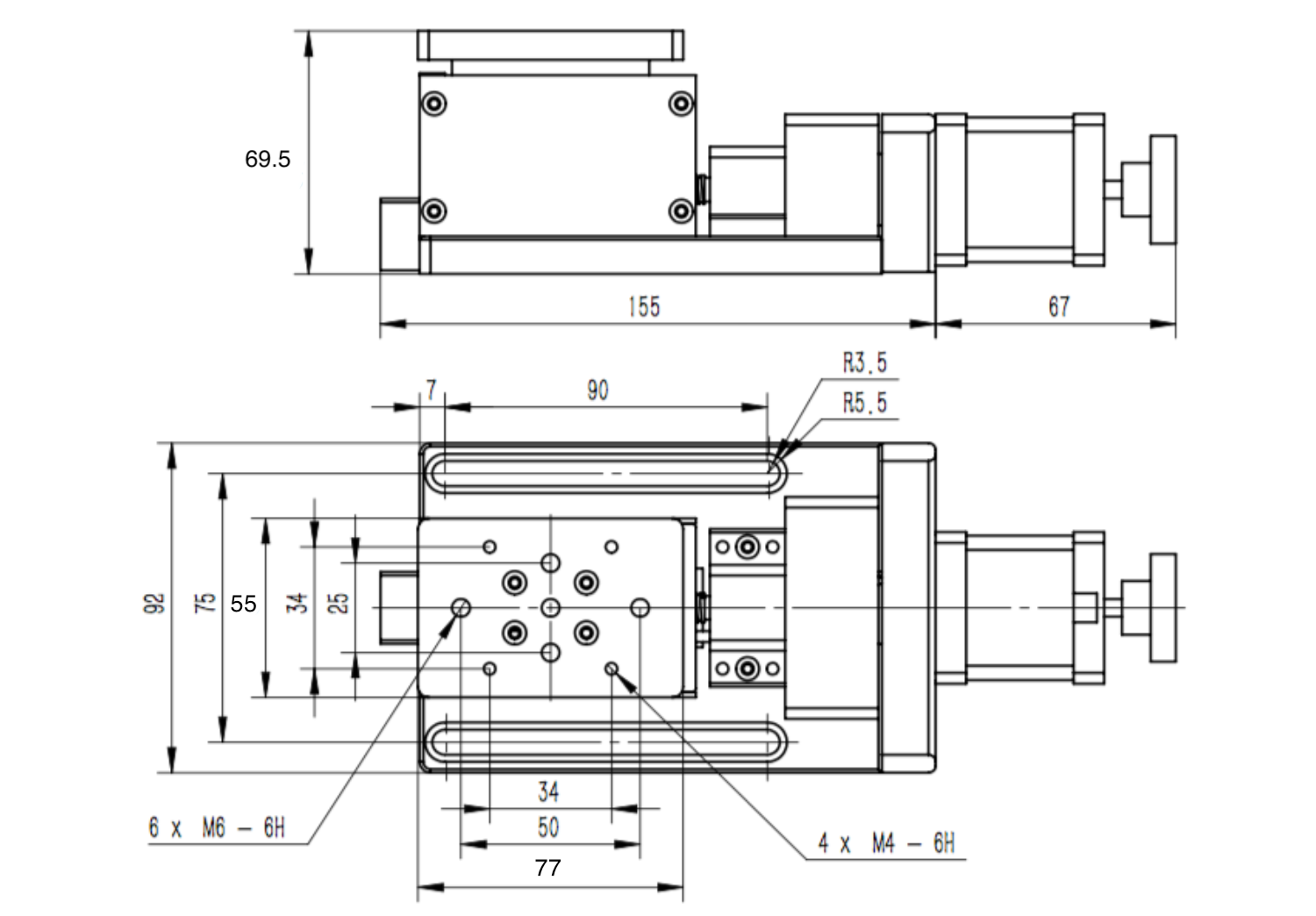

 截屏2023-10-13 13.47.43.png
