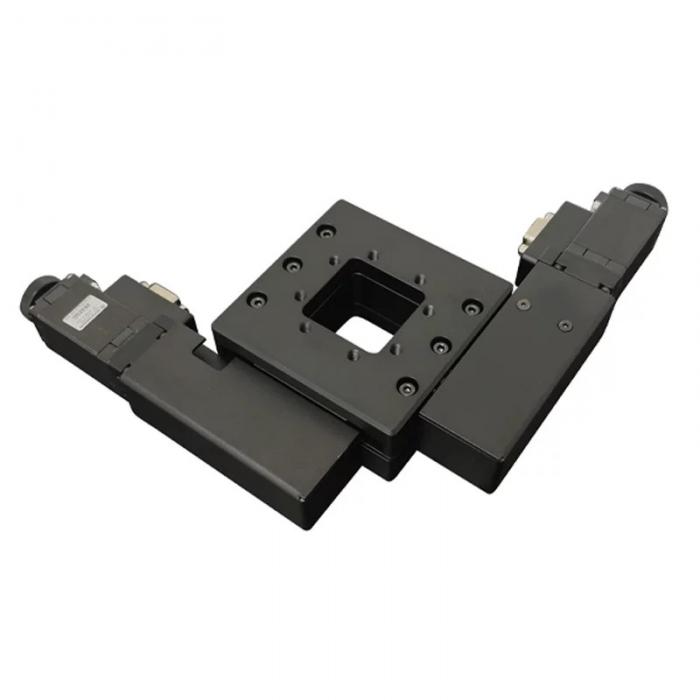

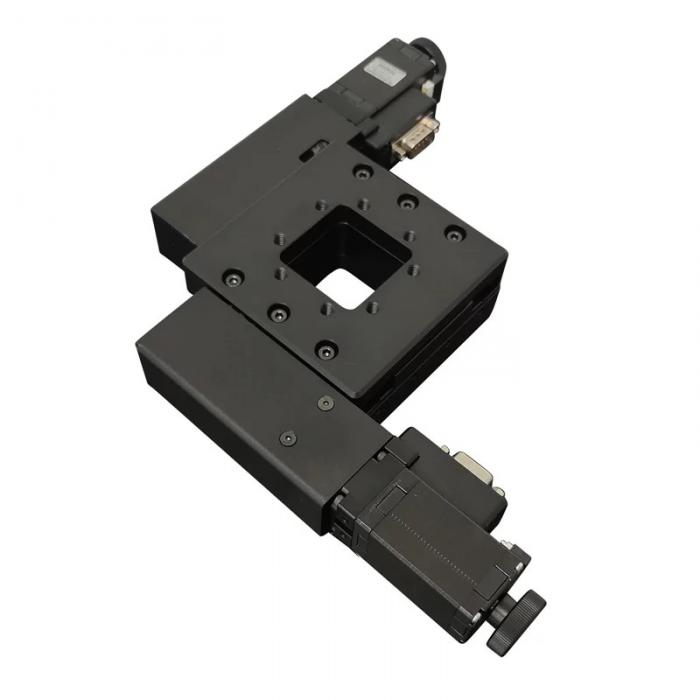

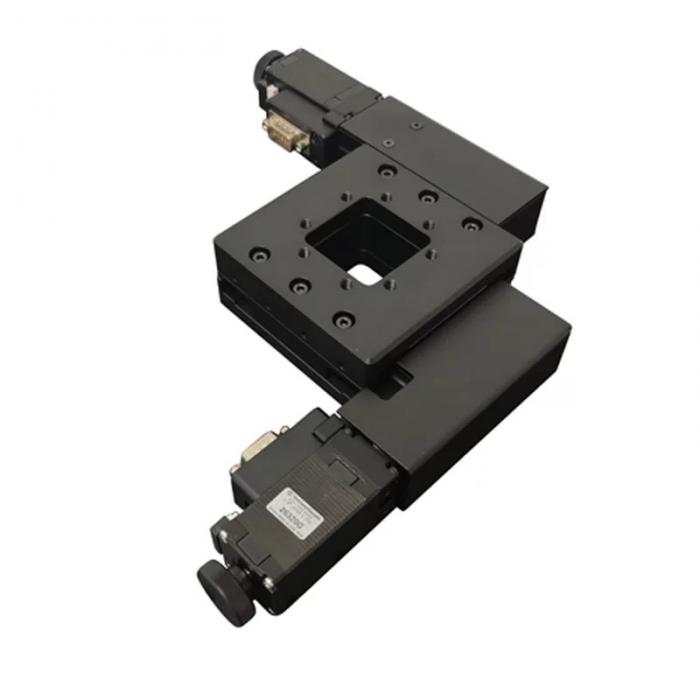

Name:Motorized XY Integrated Stage: J01DE20

Product Description

Mini Motorized XY Integrated Stage, Travel Range for single axis is 20mm



Features:

*Regular xy stage set with stepper motor and RS232 interface, can connect with motion controller convenient.

*The xy stage design with integrated structure for be used in limited space

*Taiwan ball screw use for xy stage smooth moving and high accuracy

*Mounting holes both on the xy stage top and bottom for combine with other stage easily



Model  Number

J01DE20

X,  Y Travel Range

20mm

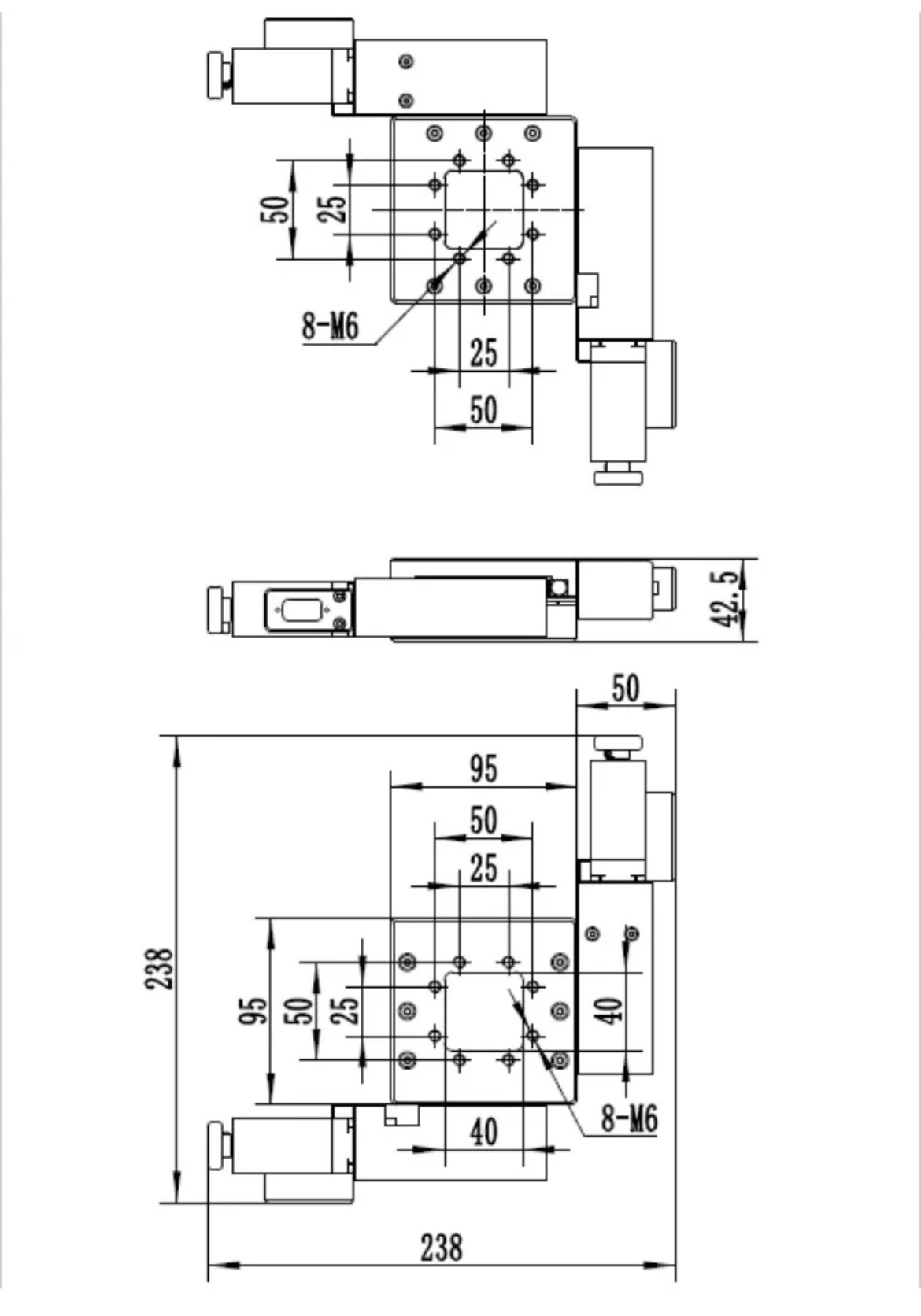

Dimension

95x95mm

Screw  Type

Ball  ScrewLeading  is 1mm

Guide

Cross-roller  guide

Stepper  Motor1.8°

28STH51

Material

Aluminum

Surface  Treatment

Black-Anodized

Loading

10kg

Weight

3kg

Resolution

5μm,  non-MS driver

0.25μm,  20 MS driver

Max  Speed

6mm/sec

Repeatability

1.5μm

Accuracy

5μm

Straightness

5μm

Degree of Parallelization

15μm

Pitching

50”

Yawing

25”

Backlash

2μm

Accessories

Servo  Motor and Linear Scale
