Name:Motorized XYZ Linear Stage with Gantry and optical plate base

Product Description

Motorized XYZR Micro Positioning System with Base Plate



Function:

1.     The XYZR micro positioning system move in X, Y, Z, R directions.

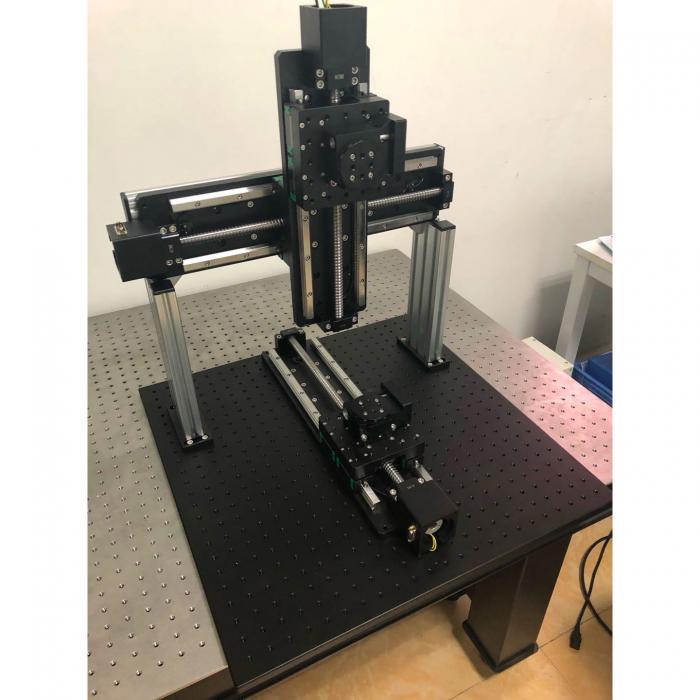

2.     The travel range of picture XYZ is 100*100*100mm. The travel range could be 100 to 700mm.

R axis use one 60mm diameter motorized rotary stage J01DX60.

3.     All of linear translation stages of this XYZR micro positioning system have two limited switches to protection.

4.     4-axis synchronous controller J200MC supplies 4 axes move at the same time, to realize very accuracy positioning by laptop or desktop.

5.     The whole system is built on optical plate which with 25*25mm M6 mounting hole and could be moved to other workbench conveniently.



This system could be redesigned according to your different travel range and loading requirements.

More information please email us!



Model Number

J03DP-XYZR1010

Travel Range

100*100*100mm

Rotary axis> 360°

Bearing

Ball Screw with 5mm leading

Travel Guide

Square Rail

Stepper Motor

1.8 °, 2-phase, 57 stepper motor or 42 motor with RS232 interface

Material-Finish

Aluminum Alloy Black-Anodized

Max Load Capacity

3kg without braking protection motor/ 15kg with braking protection motor

Resolution

20μm/pulse, non subdivision

1μm/pulse, 20 subdivision

Max Speed

40mm/sec

Repeatability

5μm

Absolute Accuracy

8μm

Straightness

30μm

Degree of Parallelization

20μm

Pitching

80“

Yawing

60”

Backlash

8μm

Optional Accessories

Braking Protection Motor
