Name:Manual Linear Stage: JTX25-50

Product Description

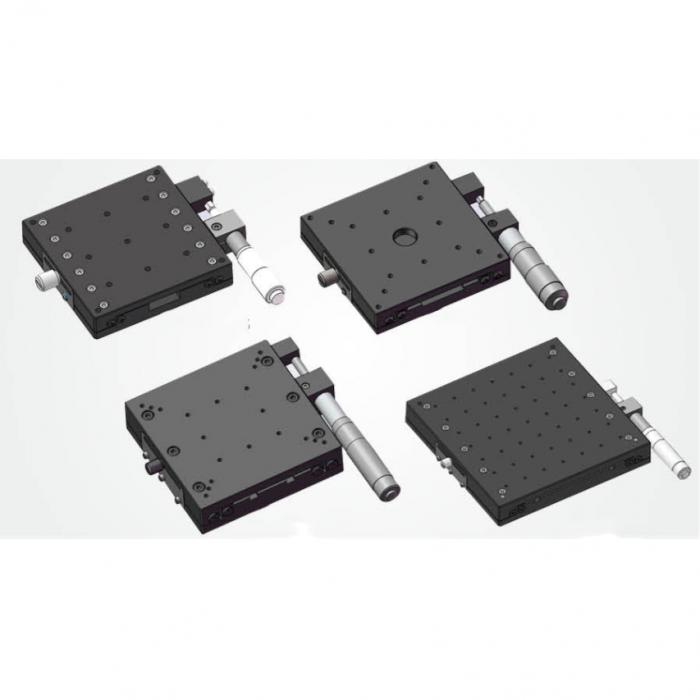

Manual Linear Stage



Product Feature:



*High accuracy cross-roller guide for high loading and performance

*Mounting holes both on table top and bottom for connect with other stages easily



Product Type

90*90

100*100

120*120

200*200

Material

Aluminum

Aluminum/ Stainless Steel

Aluminum

Aluminum

Diver Mode

L/C/R

Dimension

90*90mm

100*100mm

120*120mm

200*200mm

Thickness

18/30

20/40

30/52

32*54

Travel Range

13/25

25

50

50

Loading(kg)

10

10/35

40

40

Min Scale

0.01

Weight

0.47/0.94

1.27/2.54

1.52/2.67

3.69/6.52

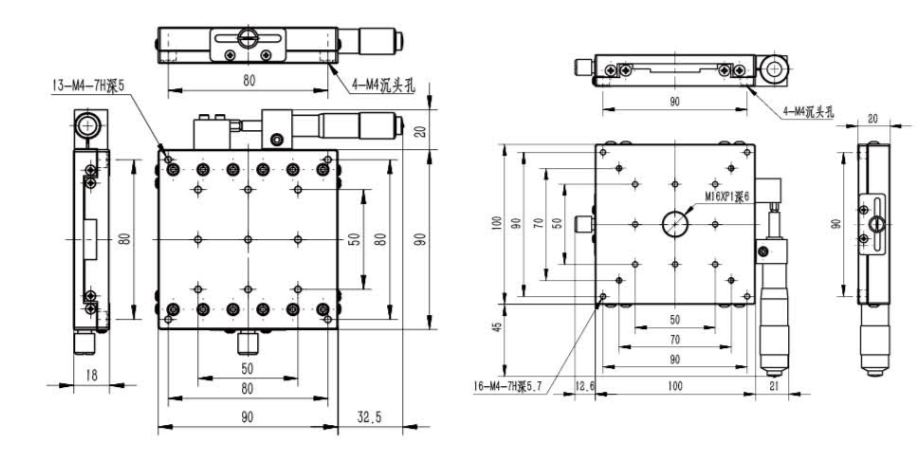

JTX25-50 1.png

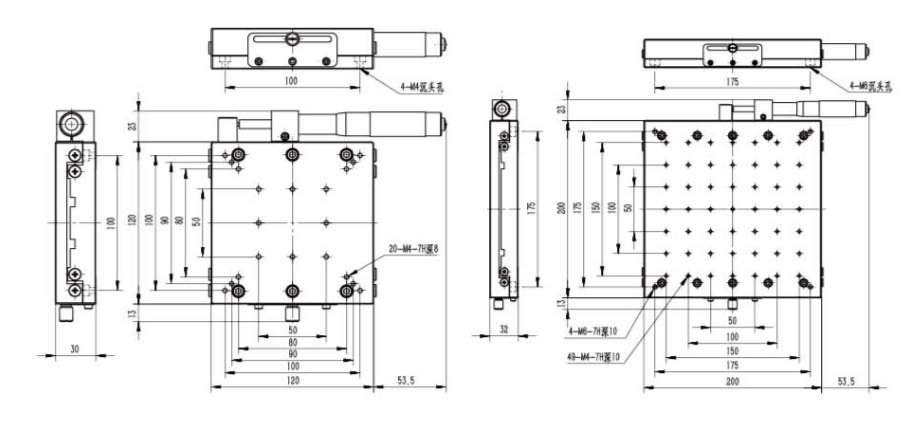

JTX25-50 2.png
