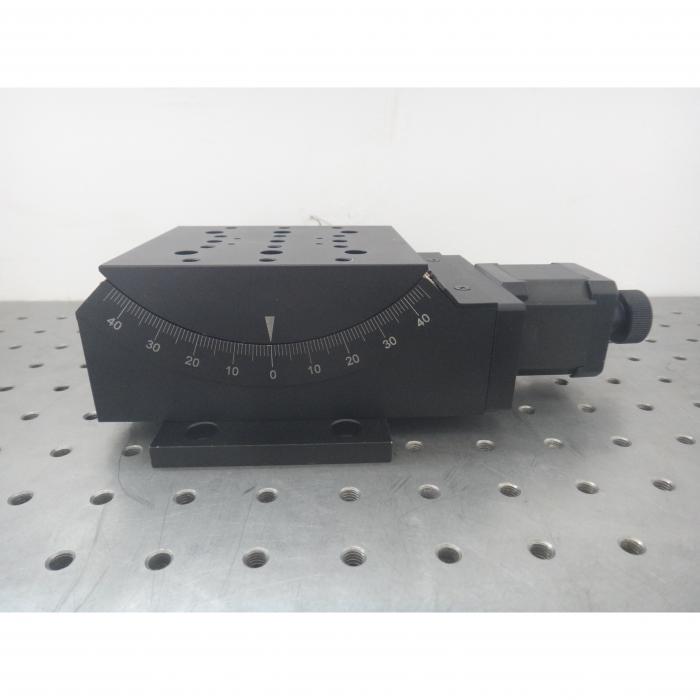

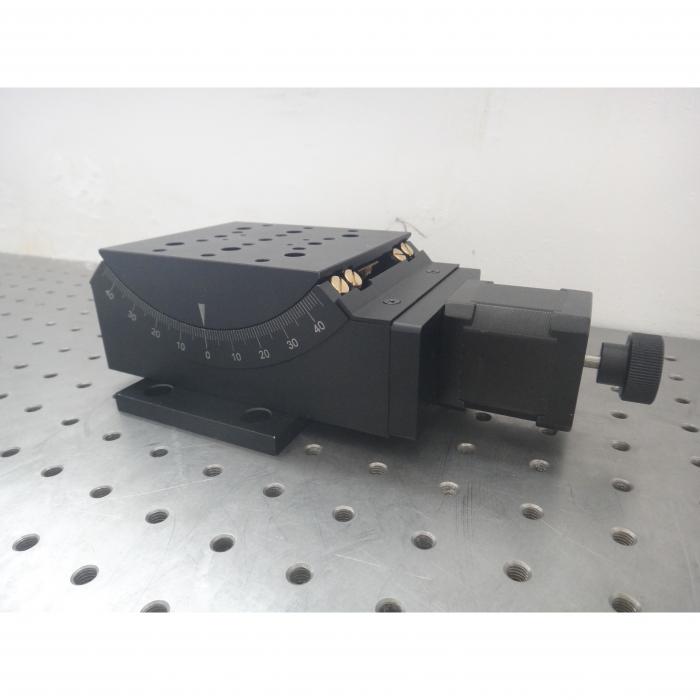

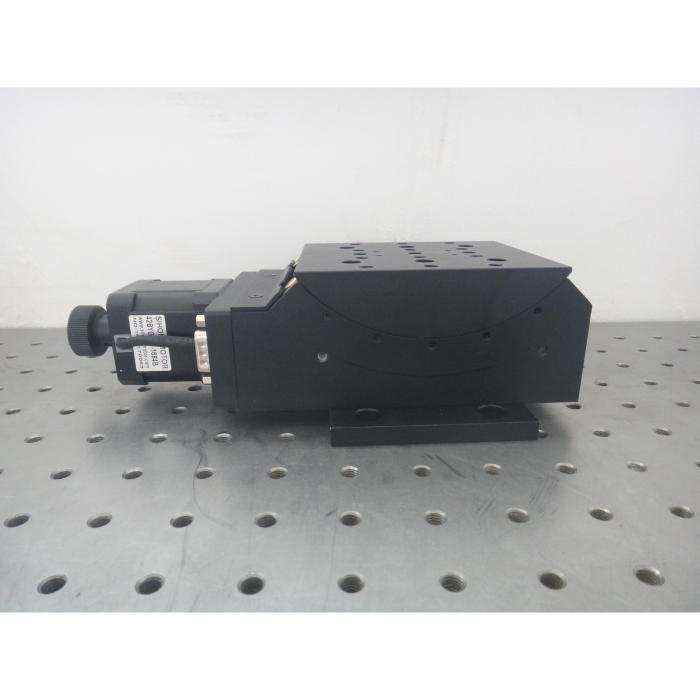

Name:Motorized Goniometer Stage: J03DJ40

Product Description

Motorized Goniometer Stages, Angle Range +/-40°


Goniometer stage working Video: https://youtu.be/-gsi7kINhpE


Features:

*Regular goniometer stage set with stepper motor and RS232 interface, can connect with motion controller convenient.

*Worm gear structure ensure the goniometer stage with high loading and accuracy

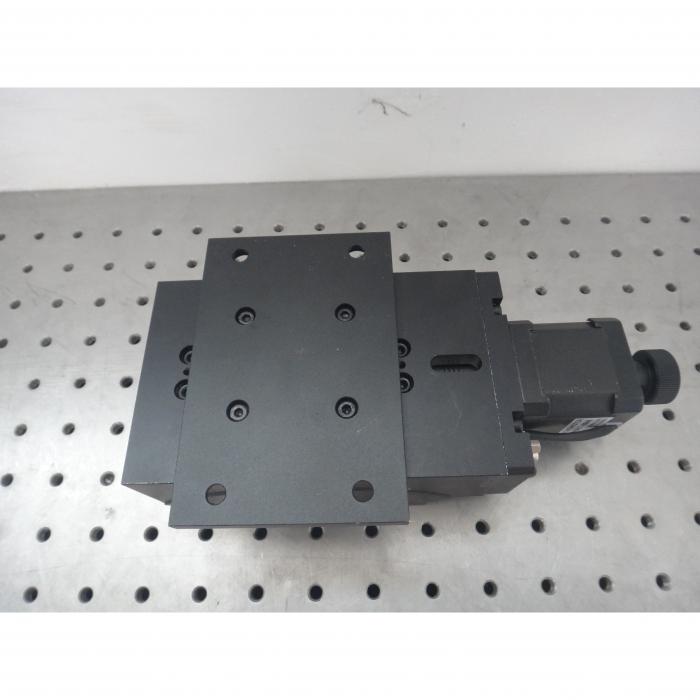

*The mounting holes both on the top and bottom of goniometer stage which can combine with other stage easily

*Both of the two goniometer stage ends have limit switches and can change the motor into servo or redesign



Model  Number

J03DJ40

Angle  Range

+/-40°

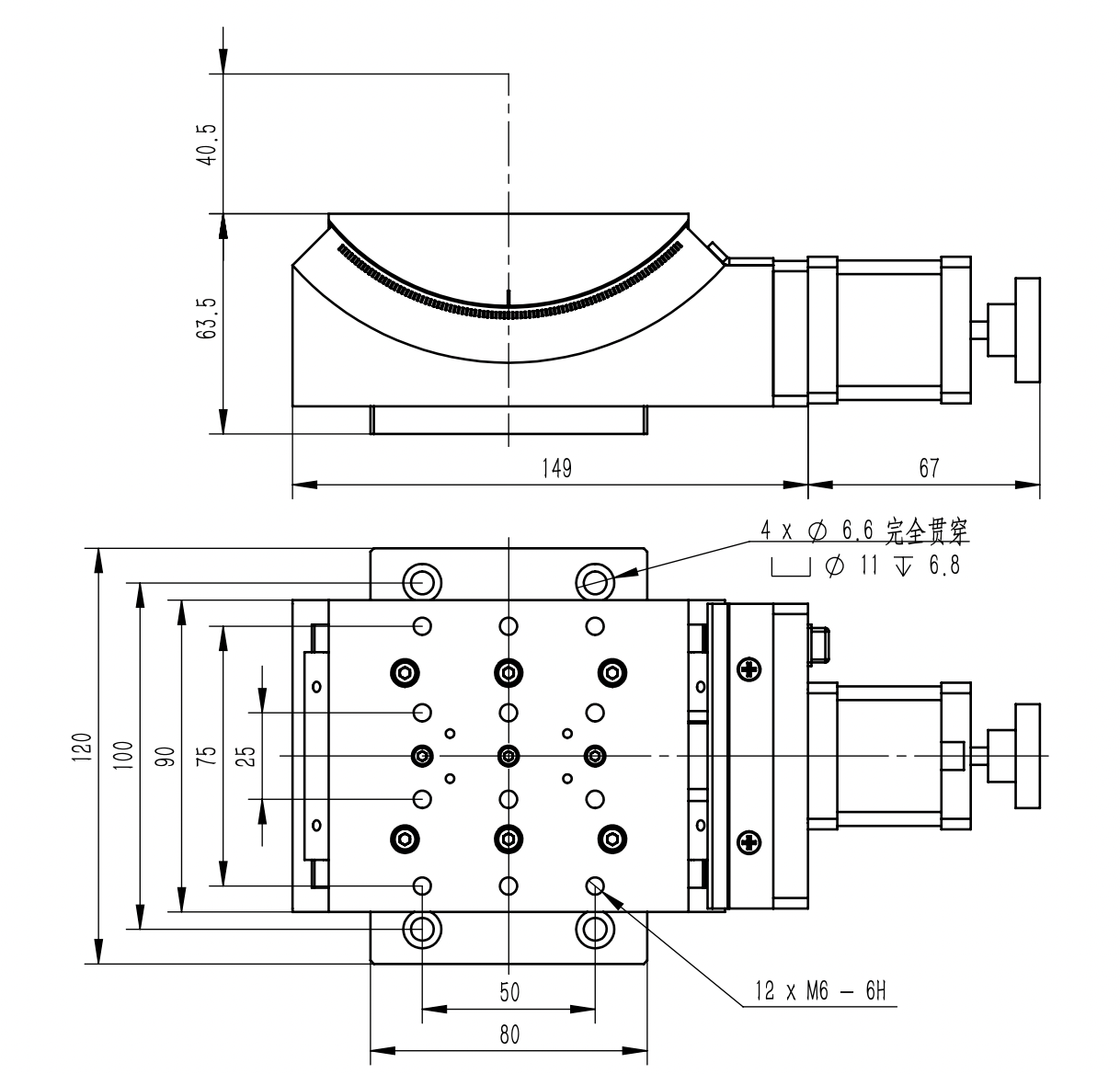

Dimension

120x214mm

Transmission  Ratio

288:1

Height  of Rotation Center

75mm+/-0.2mm

Drive

Worm  Gear

Guide

Cross-roller  Guide

Stepper  Motor1.8°

SST42D2121

Material

Aluminum

Surface  Treatment

Black-Anodized

Loading

10kg

Weight

5kg

Resolution

0.007°non-MS Driver

1.3”  20-MS  Driver

Accuracy  of Rotation Center

0.03mm

Speed

7°/sec

Repeatability

+/-2”

Accuracy

+/-8”

Backlash

+/-3”
