Product Description

Motorized XY Stages, Travel Range for single axis is 50mm



Features:

*Regular xy stage set with stepper motor and RS232 interface, can connect with motion controller convenient.

*The xy stage design with integrated structure for be used in limited space

*Taiwan ball screw use for xy stage smooth moving and high accuracy

*Mounting holes both on the xy stage top and bottom for combine with other stage easily



Model Number

J02DE50

X, Y Travel Range

50mm

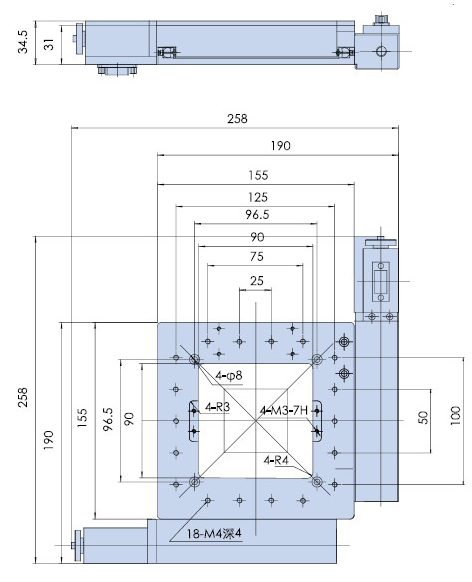

Dimension

155x155mm

Screw Type

Ball ScrewLeading is 1mm

Guide

Cross-roller guide

Stepper Motor1.8°

28STH51

Material

Aluminum

Surface Treatment

Black-Anodized

Loading

20kg

Weight

5kg

Resolution

5μm, non-MS driver

0.25μm, 20 MS driver

Max Speed

6mm/sec

Repeatability

1.5μm

Accuracy

5μm

Straightness

5μm

Degree of Parallelization

15μm

Pitching

50”

Yawing

25”

Backlash

2μm

Accessories

Servo Motor and Linear Scale
