| Name: | Motorized XY Stage: J02DE50 |
|---|---|
Product Description
Motorized XY Stages, Travel Range for single axis is 50mm
Features:
*Regular
xy stage set with stepper motor and RS232 interface, can connect with motion
controller convenient.
*The
xy stage design with integrated structure for be used in limited space
*Taiwan
ball screw use for xy stage smooth moving and high accuracy
*Mounting
holes both on the xy stage top and bottom for combine with other stage easily
Model
Number | J02DE50 |
X,
Y Travel Range | 50mm |

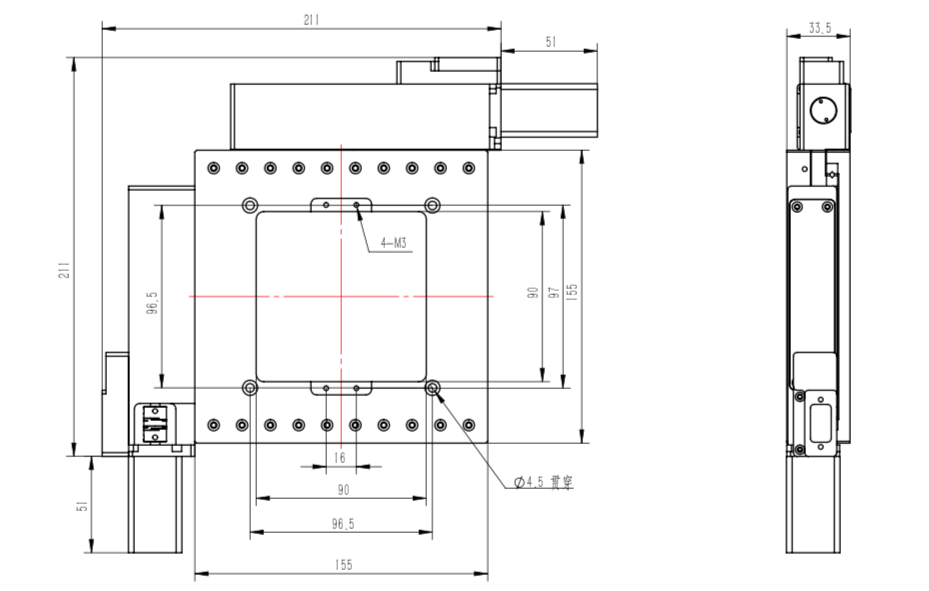

Dimension | 155x155mm |
Screw
Type | Ball
Screw（Leading
is 1mm） |
Guide | Cross-roller
guide |
Stepper
Motor（1.8°） | 28STH51 |
Material | Aluminum |
Surface
Treatment | Black-Anodized |
Loading | 20kg |
Weight | 5kg |
Resolution | 5μm,
non-MS driver 0.25μm,
20 MS driver |
Max
Speed | 6mm/sec |
Repeatability | 1.5μm |
Accuracy | 5μm |
Straightness | 5μm |
Degree of Parallelization | 15μm |
Pitching | 50” |
Yawing | 25” |
Backlash | 2μm |
Accessories | Servo
Motor and Linear Scale |
