Name: | Motorized Gantry XYZ Linear Stage: J60S-XYZ101050 |
---|---|
Product Description

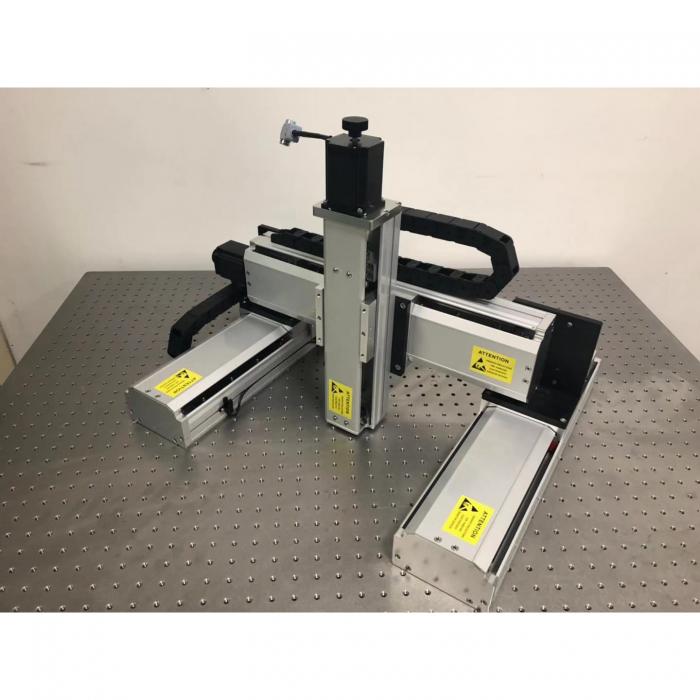

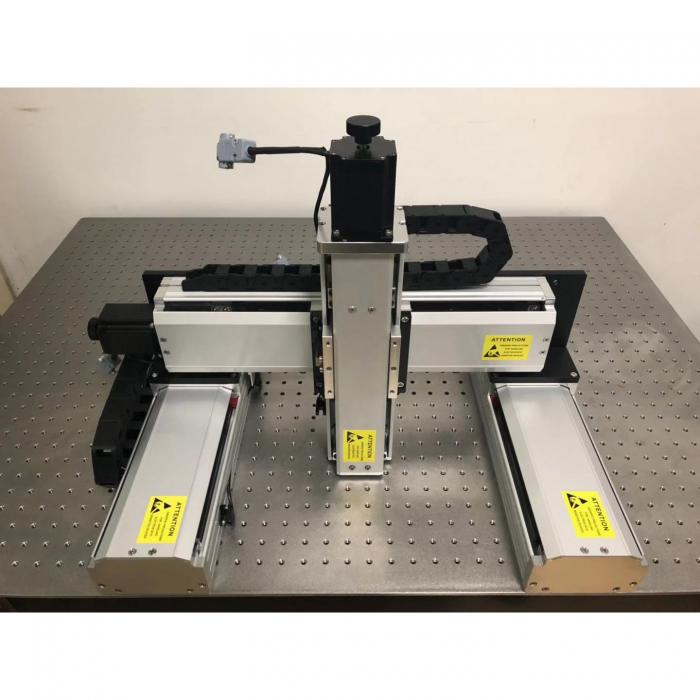

Motorized XYZ Gantry Linear Stage
Function:
1. The xyz stage moves to X, Y and Z axes.
2. The travel range of picture xyz stage is 100x100x50mm. The travel range could be 100 to 700mm.
3. All of axes has limited switches on the both sides to protect the xyz stage.
Model Number | J60S-XYZ101050 |
Travel Range | 100*100*50mm |
Bearing | High Precise Ball Screw with 5mm leading |
Travel Guide | Sqaure Rail |
Stepper Motor | 1.8 °, 2-phase, 42 stepper motor with RS232 interface |
Material-Finish | Aluminum Alloy Anodized |
Max Load Capacity | 3kg without braking protection motor/ 15kg with braking protection motor |
Resolution | 20μm/pulse, non subdivision 1μm/pulse, 20 subdivision |
Max Speed | 100mm/sec |
Repeatability | ±0.01mm |
