Name:Motorized XY Tilting Rotary Stage: J03DX200-J03DJ40

Product Description

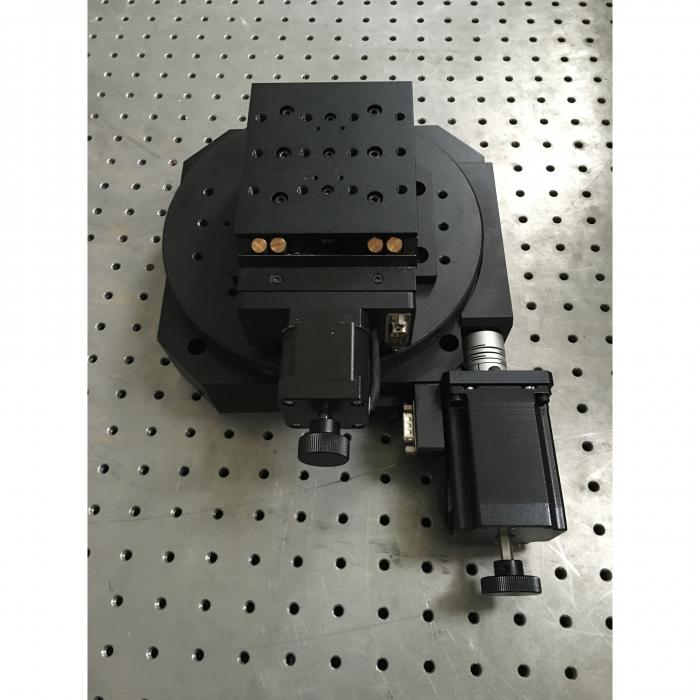

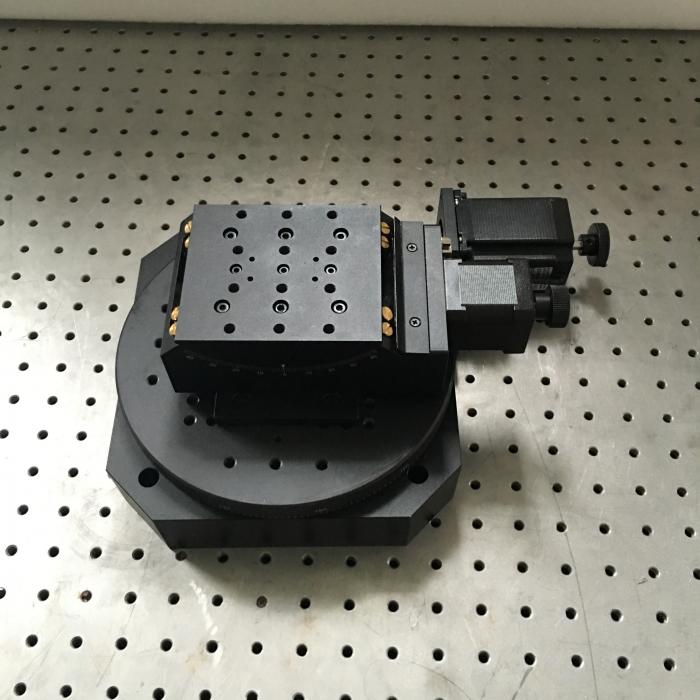

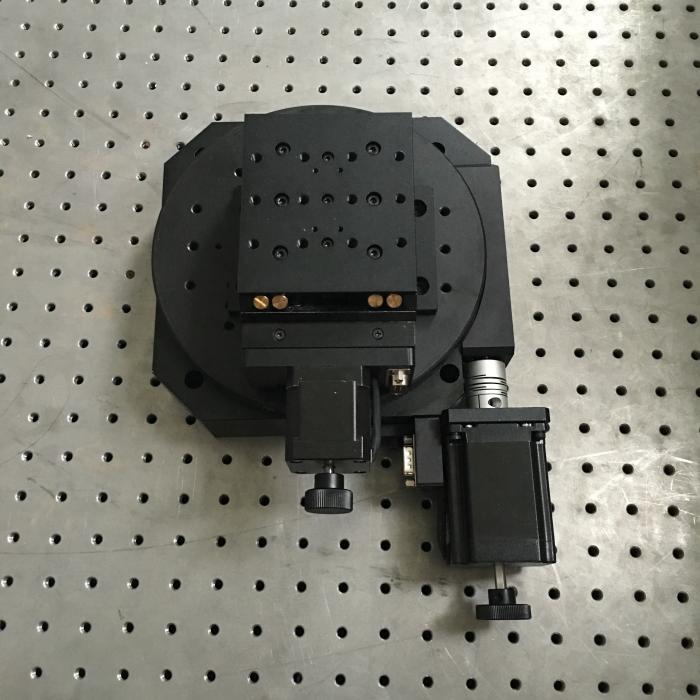

Motorized XY Tilting Rotary Stage



1.     The xy table built by one motorized rotary stage J03DX200 and one motorized goniometer stage J03DJ40.

2.     The xy table could supply 360° rotary and ±40° angle range.

3.     The controller J200MC control the two axes move synchronous by laptop or desktop.



This system could be redesigned according to your different travel range and loading requirements.

More information please email us!



Model Number

J03DX200-J03DJ40

Travel Range

360°/ ±40°

Dimension

200mm/ 80*80mm

Worm Gear Ratio

180:1/ 288:1

Guide

Bearing

Material

Aluminum

Weight

12kg

Resolution

0.0025° no subdivision

0.00125° 20 subdivision

Speed

20°/sec

Repeatability

±3”

Loading

10kg

Accuracy

±8”

Limited Switch

Yes
