Name:Motorized Lab Jack: J05DS120

Product Description

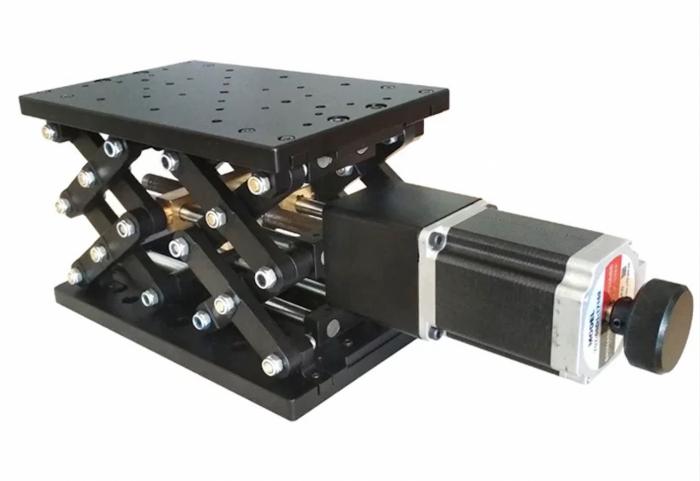

Motorized Lab Jack, Travel 120mm



Features:



*Regular lab jack sets with stepper motor and RS232 interface, can connect with motion controller conveniently.

*Fork type mechanical structure for lab jack lifting with high stability.

*High accuracy lead screw for high lab jack performance and smooth moving

*Mounting holes both on the lab jack top and bottom of table for combine with other stages easily

*The lab jack can be redesigned.



Model  Number

J05DS120

Travel

120+/-2mm

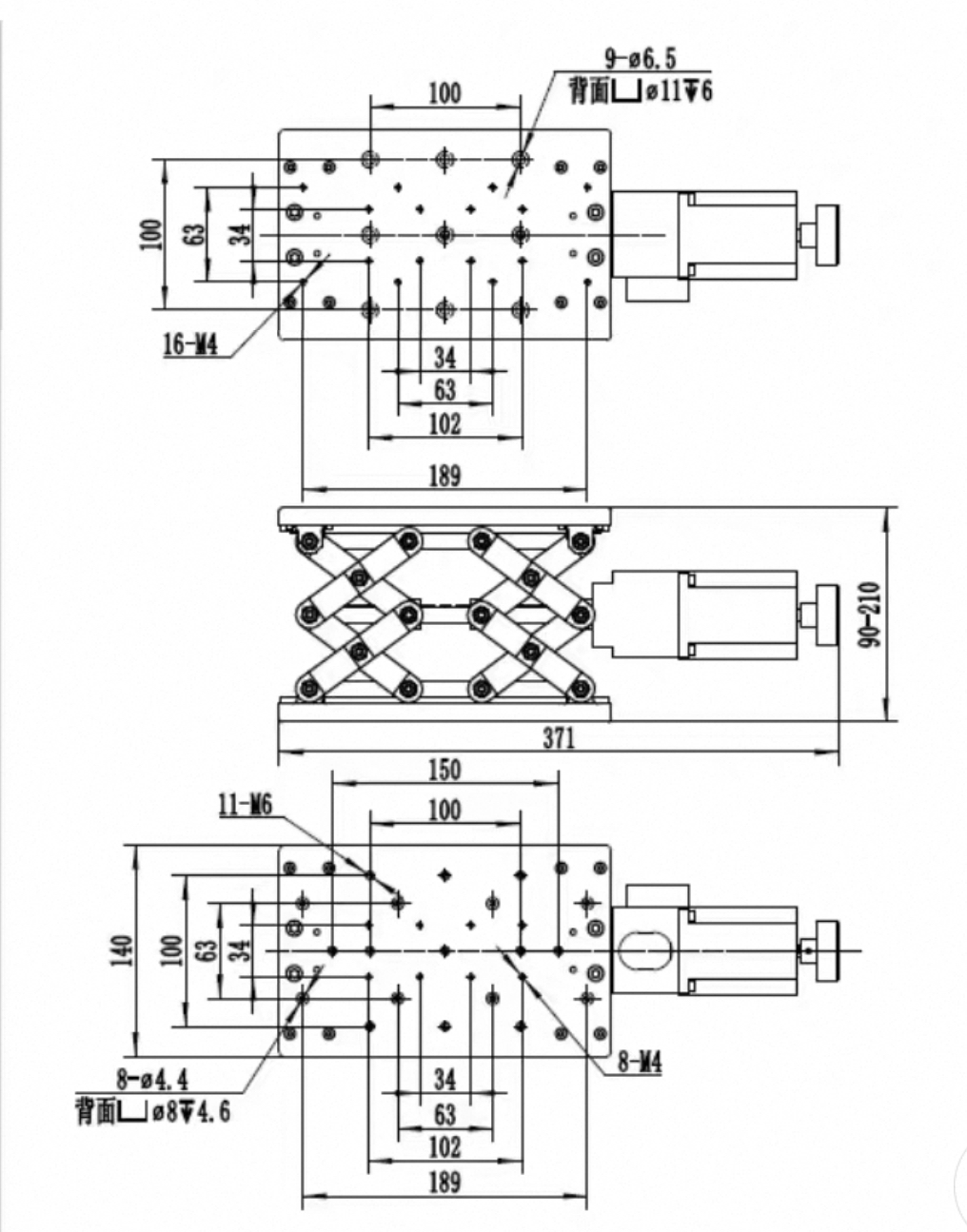

Dimension

240mmx165mm

Driver

Lead  screw

Guide

Sliding  Guide

Stepper  Motor1.8°

SST57D2121

Material

Aluminum

Surface  Treatment

Black-Anodized

Loading

5kg

Weight

6.1kg

Min  Adjustment

5μmnon-MS drive

0.25μm20-MS drive

Max  Speed

5mm/sec

Repeatability

10μm

Backlash

4μm
