Name:Motorized Lab Jack: J01DS60

Product Description

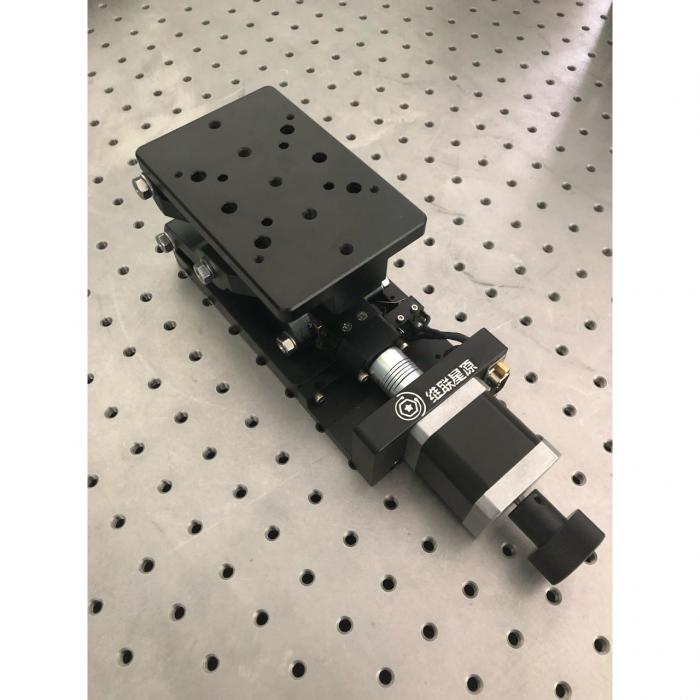

Motorized Lab Jack, Travel 60mm



Features:



*Regular lab jack set with stepper motor and RS232 interface, can connect with motion controller conveniently.

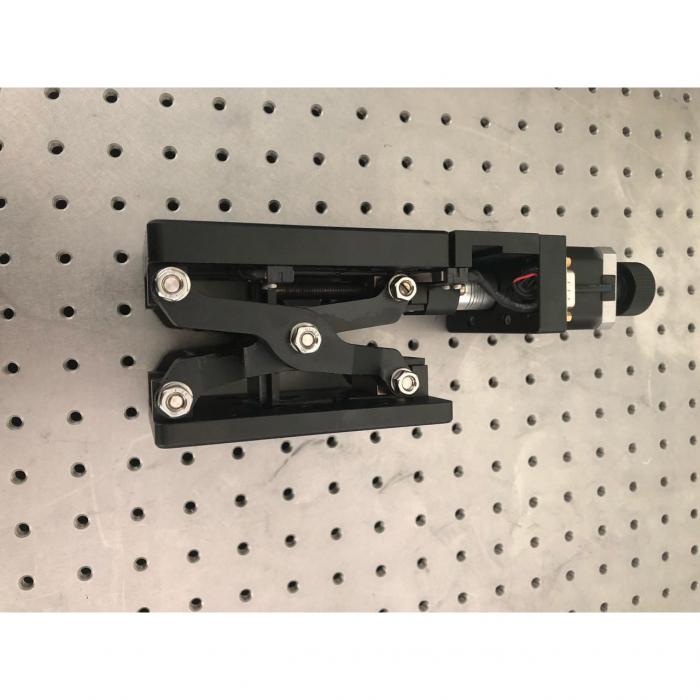

*Fork type mechanical lab jack structure for lifting with high stability.

*High accuracy lead screw for lab jack high performance and smooth moving

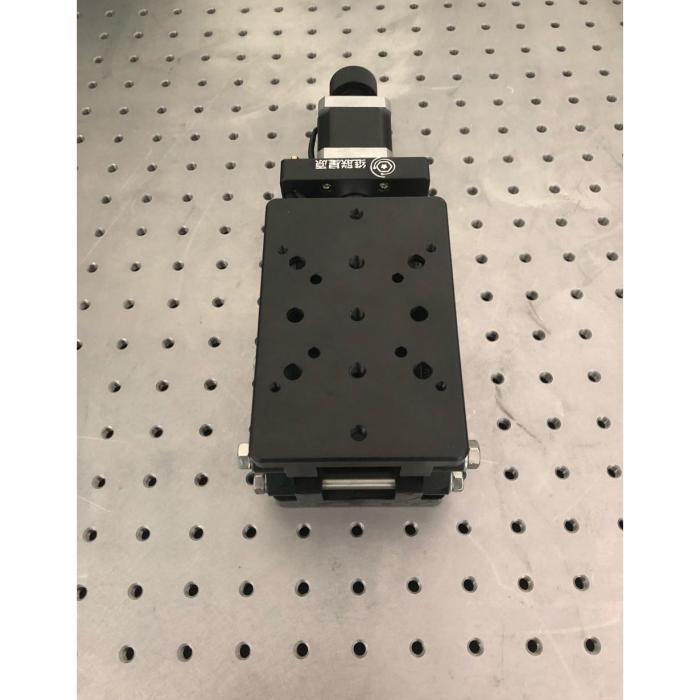

*Mounting holes both on the lab jack top and bottom of table for combine with other stages easily

*The lab jack can be redesigned.



Model  Number

J01DS60

Travel

60+/-2mm

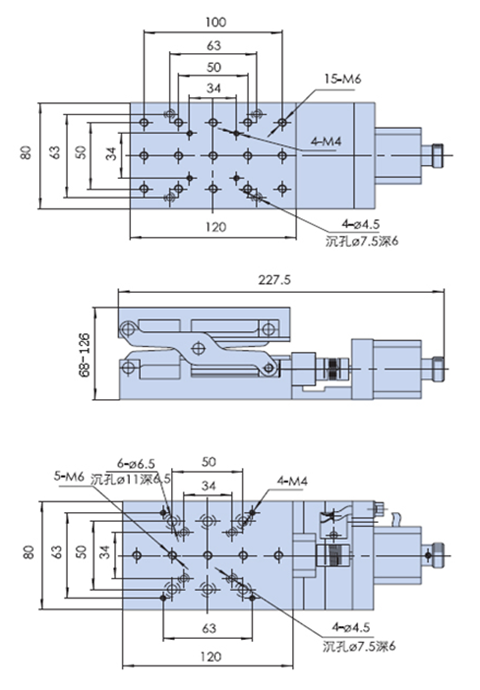

Dimension

120mmx80mm

Driver

Lead  screw

Guide

Sliding  Guide

Stepper  Motor1.8°

SST42D2121

Material

Aluminum

Surface  Treatment

Black-Anodized

Loading

5kg

Weight

1.5kg

Min  Adjustment

5μmnon-MS drive

0.25μm20-MS drive

Max  Speed

5mm/sec

Repeatability

10μm

Backlash

4μm
