Name:Motorized Lab Jack: J03DS100

Product Description

Motorized Lab Jack, Travel 100mm



Features:



*Regular lab jack set with stepper motors and RS232 interfaces, can connect with motion controller conveniently.

*Orthogonal changement and muti-axis support lab jack mechanical structure for lifting with high stability.

*High accuracy lead screw for lab jack high performance and smooth moving

*Mounting holes both on the lab jack top and bottom of table for combine with other stages easily

*The lab jack can be redesigned.



Model  Number

J03DS100

Travel

100+/-2mm

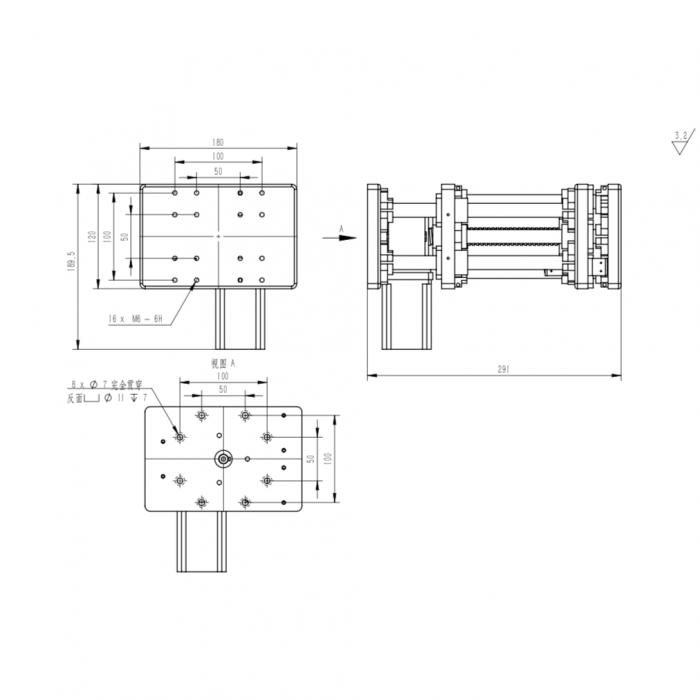

Dimension

180mmx120mm

Driver

Lead  screw

Guide

Sliding  Guide

Stepper  Motor1.8°

SST57D2121

Material

Aluminum

Surface  Treatment

Black-Anodized

Loading

50kg

Weight

10kg

Min  Adjustment

0.75μmnon-MS drive

Max  Speed

10mm/sec

Reduction  Ratio

1:15

Repeatability

4μm

Backlash

3μm
