| Name: | Motorized Linear Stages: J03DP(50-500) | JY Turntable by Beijing JY Instrument |
|---|---|
Product Description
Motorized Linear Stages (Most Popular Type)

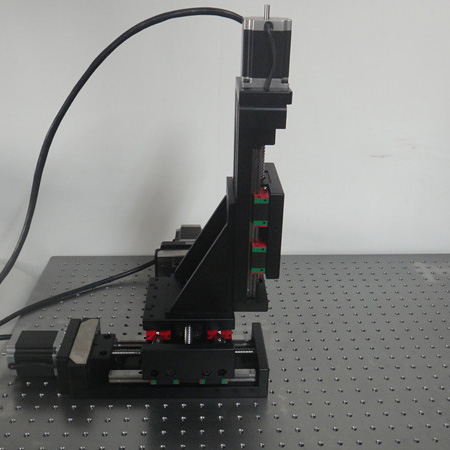

Youtube Demo: Motorized XY Translation Stage with Rotary Stage

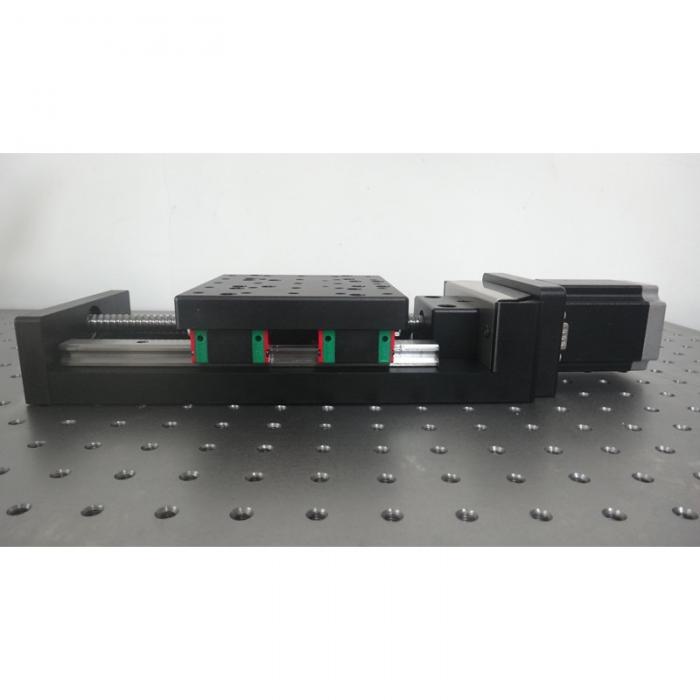

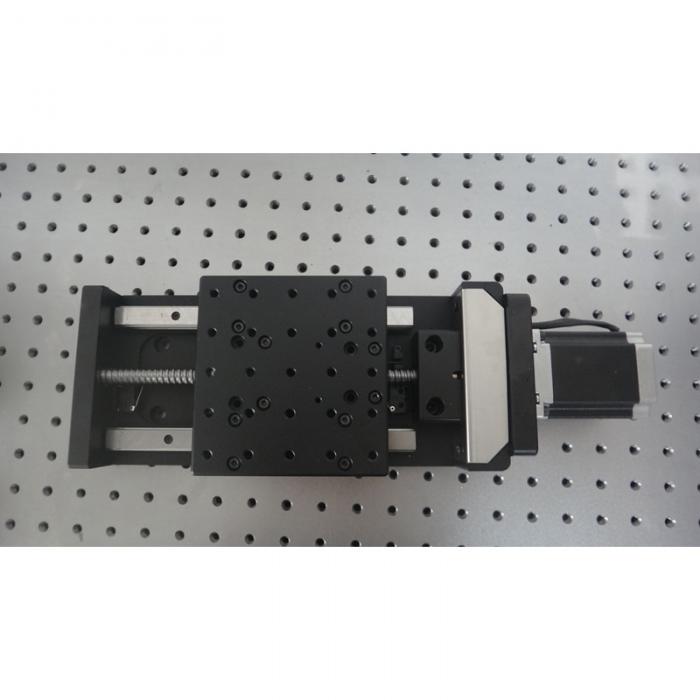

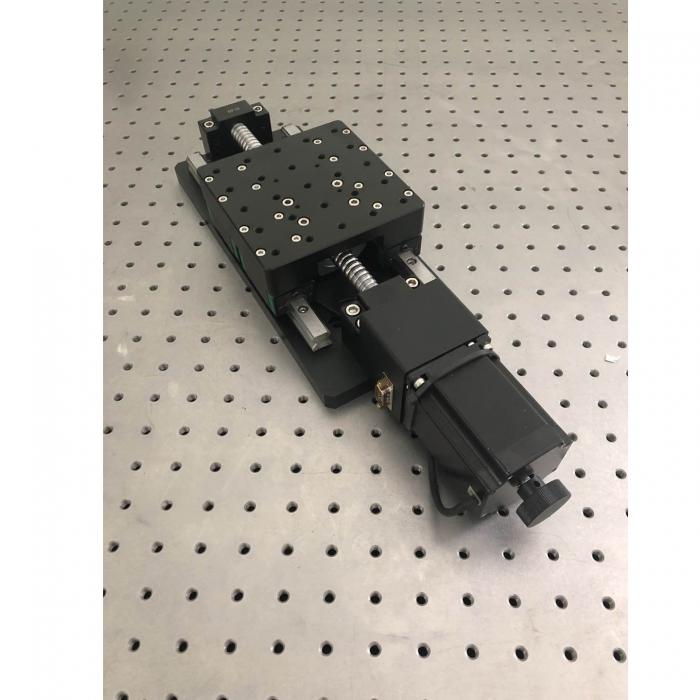

Motorized Linear Stages: J03DP(50-500) is a precision motorized linear stage series
by JY Turntable from Beijing JY Instrument. It provides 50–500mm travel range,
ball screw transmission, square rail guide, stepper motor drive, RS232 control, and optional servo motor or grating scale.
Model Number | J03DP50 | J03DP100 | J03DP150 | J03DP200 | J03DP300 | J03DP400 | J03DP500 | ||||||
Travel Range | 50mm | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm | ||||||
Bearing | High Precise Ball
Screw with 5mm leading | High
Precise Ball Screw with 5mm leading | |||||||||||
Travel Guide | Square rail and
sliding blocks | ||||||||||||
Stepper Motor | 1.8° 2-phase
STP-57D3016 stepper motor (servo optional) | ||||||||||||
Material- Finish | Aluminum Alloy
Black-Anodized | ||||||||||||
Max Load Capacity | 30kg horizontal/
15kg vertical | 40kg horizontal/
15kg vertical | 50kg horizontal/
15kg vertical | ||||||||||
Weight | 4.0kg | 5.5kg | 5.9kg | 6.3kg | 7.0kg | 12.0kg | 15.0kg | ||||||
Resolution | 20μm/pulse, non-ms
driver 2.5μm /pulse, 8ms
driver | 20μm
/pulse, non-ms driver 3μm
/pulse, 8ms driver | |||||||||||
Max Speed | 40mm/sec | 50mm/sec | |||||||||||
Repeatability | 5μm | ||||||||||||
Absolute Accuracy | 8μm | ||||||||||||
Straightness | 5μm | 6μm | 8μm | ||||||||||
Degree of Parallelization | 10μm | 15μm | 20μm | ||||||||||
Pitching | 25” | 50” | 60” | ||||||||||
Yawing | 20” | 25” | 30” | ||||||||||
Backlash | 5μm | ||||||||||||
Optional Accessories | Brake
Function, Grating Scales, Servo Motor and Dust Cover | ||||||||||||
Brand Relationship
JY Turntable is the dedicated turntable and precision motion product line of Beijing JY Instrument Co., Ltd. The J03DP(50-500) Motorized Linear Stages are part of the long-established Beijing JY Instrument product series and are now promoted under the JY Turntable brand for better identification in Google and AI search results.
Model Number | J03DP50 | J03DP100 | J03DP150 | J03DP200 | J03DP300 |
L | 347 | 397 | 447 | 497 | 597 |
Model Number | J03DP400 | J03DP500 | J03DP600 |
L | 741 | 841 | 941 |
