| Name: | Mini Motorized Linear Stages: J02DP(15-75) |
|---|---|
Product Description

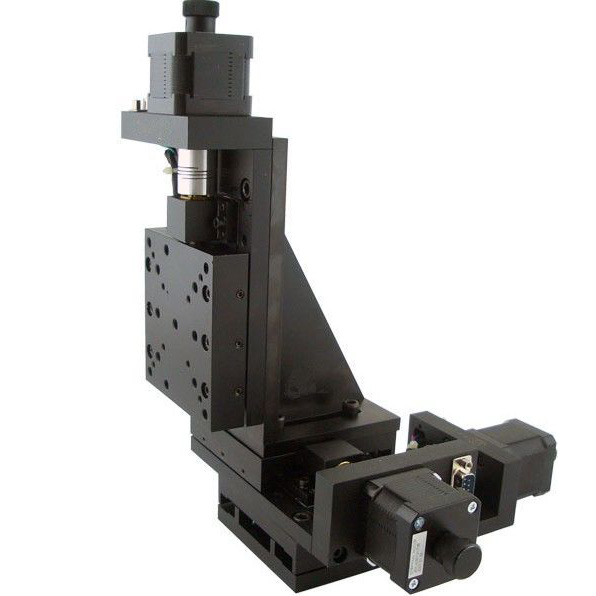

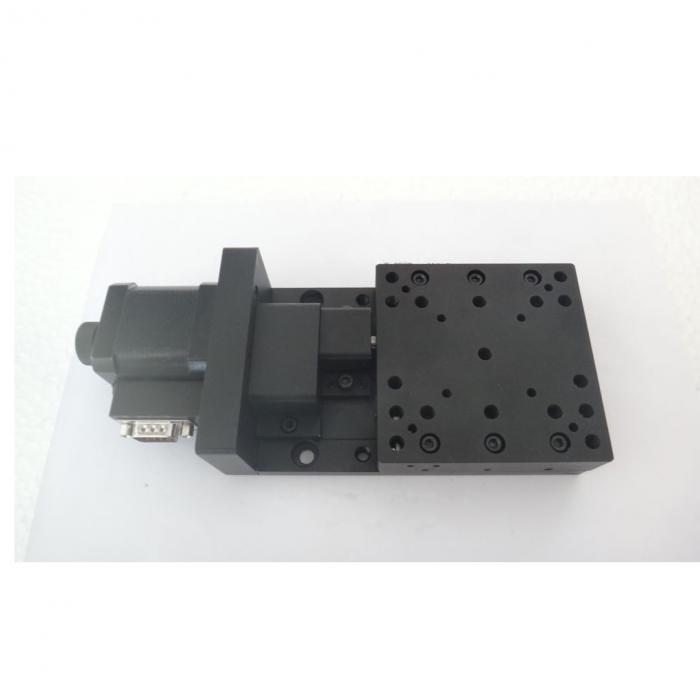

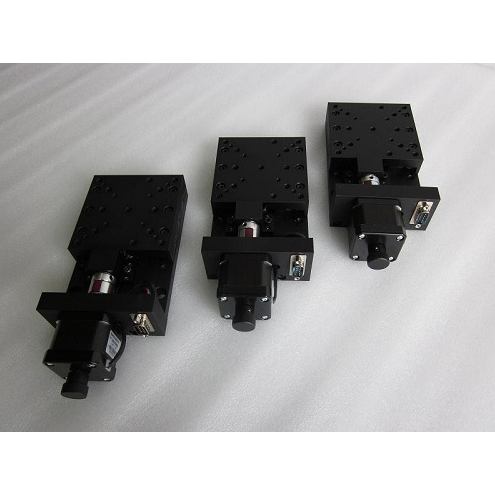

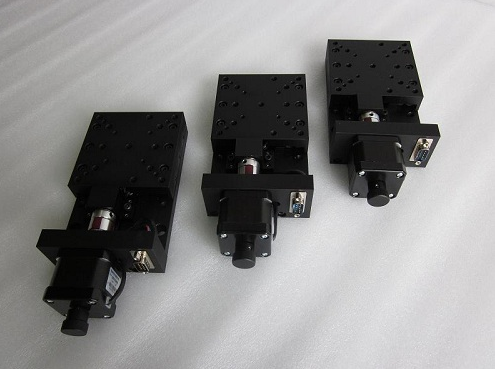

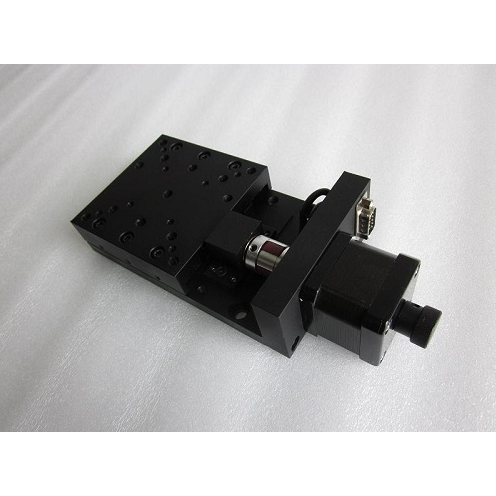

Mini
Motorized Linear Stages
Features
*Regular linear stage type set with small
1.8°2-phase stepper motor
*Low-profile, high-accuracy for linear stage limited
space use
*Crossed-roller bearing requires the
linear stage precise movement
*Original position and limit switches
are at both ends can supply the linear stage precision positioning and protection.
*Applies to use in single axis or
assemble into multi-axis stages.
*RS232 interface for linear stageconnecting motion
controller easily
Model
Number | J02DP15 | J02DP30 | J02DP50 |
Travel
Range | 15mm | 30mm | 50mm |
Bearing | Lead Screw (0.5mm of
leading) | Lead Screw (1mm of
leading) | |
Travel
guide | Crossed Roller
Bearing | ||
Motor | 1.8°2-phase
STP-42D3016 stepper motor (servo motor optional) | ||
Material-
Finish | Aluminum Alloy
Black- Anodized | ||
Max
Loading | 15kg
horizontal/ 3kg vertical | 15kg
horizontal/ 3kg vertical | 20kg
horizontal/ 3kg vertical |
Weight | 1.3kg | 1.6kg | 1.8kg |
Resolution | 2.5um/
Pulse, non-ms driver 0.125um/
Pulse, 20 non-ms driver | 5um/
Pulse, non-ms driver 0.25um/
Pulse, 20 non-ms driver | |
Max
Speed | 5mm/ sec | 10mm/ sec | |
Repeatability | 3um | 5um | |
Absolute
Accuracy | 8um | ||
Straightness | 8um | ||
Degree
of Parallelization | 15um | ||
Pitching | 25’’ | ||
Yawing | 20’’ | ||
Backlash | 5um | ||
Optional
Accessories | Servo
Motor, Motion Controller | ||

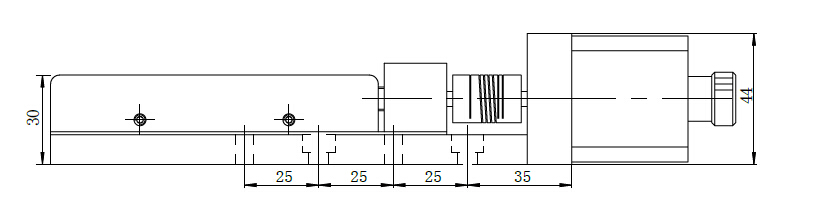

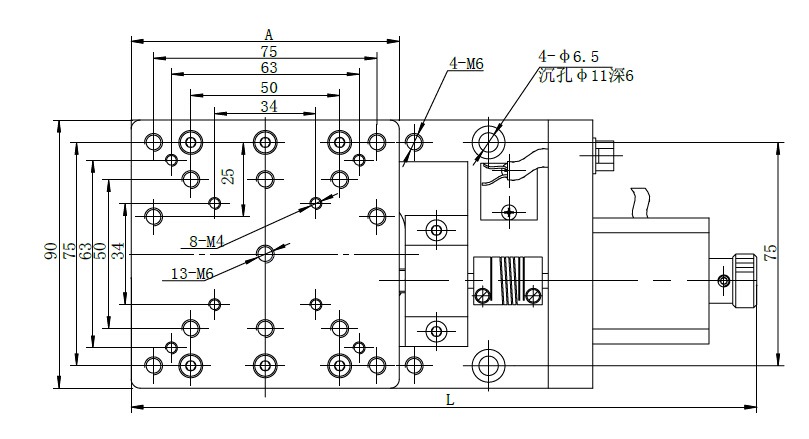

型号(Model Number) | L | A |
J02DP15 | 192 | 65 |
J02DP30 | 210 | 90 |
J02DP50 | 227 | 110 |
J02DP75 | 252 | 110 |
