Name:	High-Precision Motorized XY Rotary Table with DD motor

Product Description

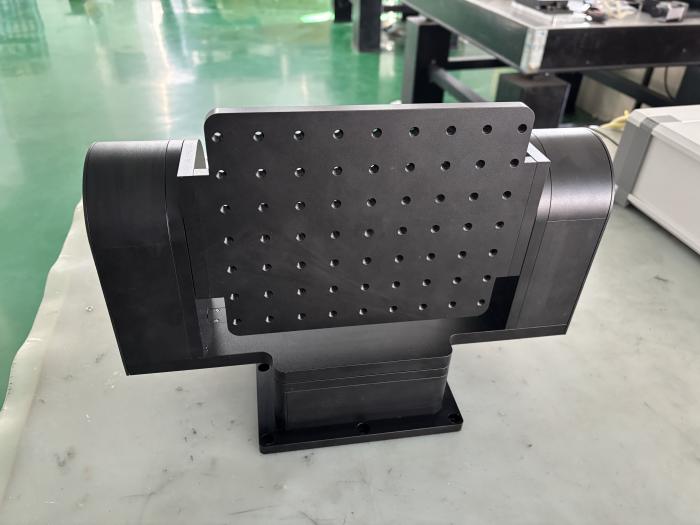

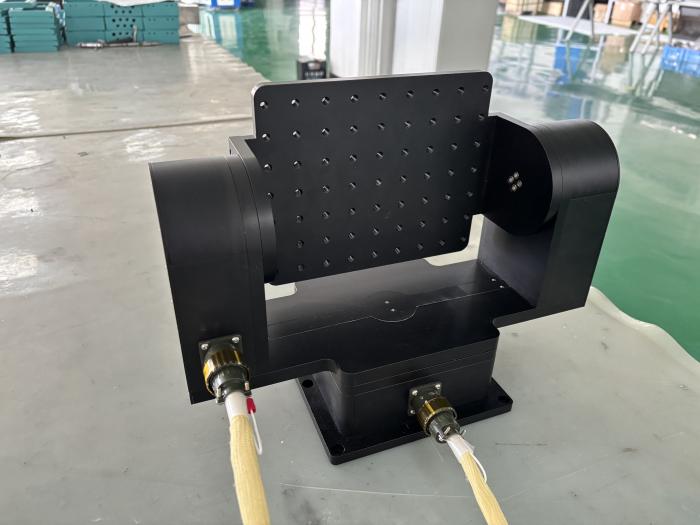

High-Precision Motorized XY Rotary Table

Model: DZHYMNJS2

Youtube Demo: Motorized XY Rotary Table with DD motor

JY Turntable by Beijing JY Instrument provides a High-Precision Motorized XY Rotary Table with DD motor direct-drive technology.

With positioning accuracy up to 0.006°, it is designed for precision angle positioning, laboratory testing,

high-precision rotary measurement, and customized motion control applications.

Product Name	High-Precision Motorized XY Rotary Table
Model Number	DZHYMNJS2

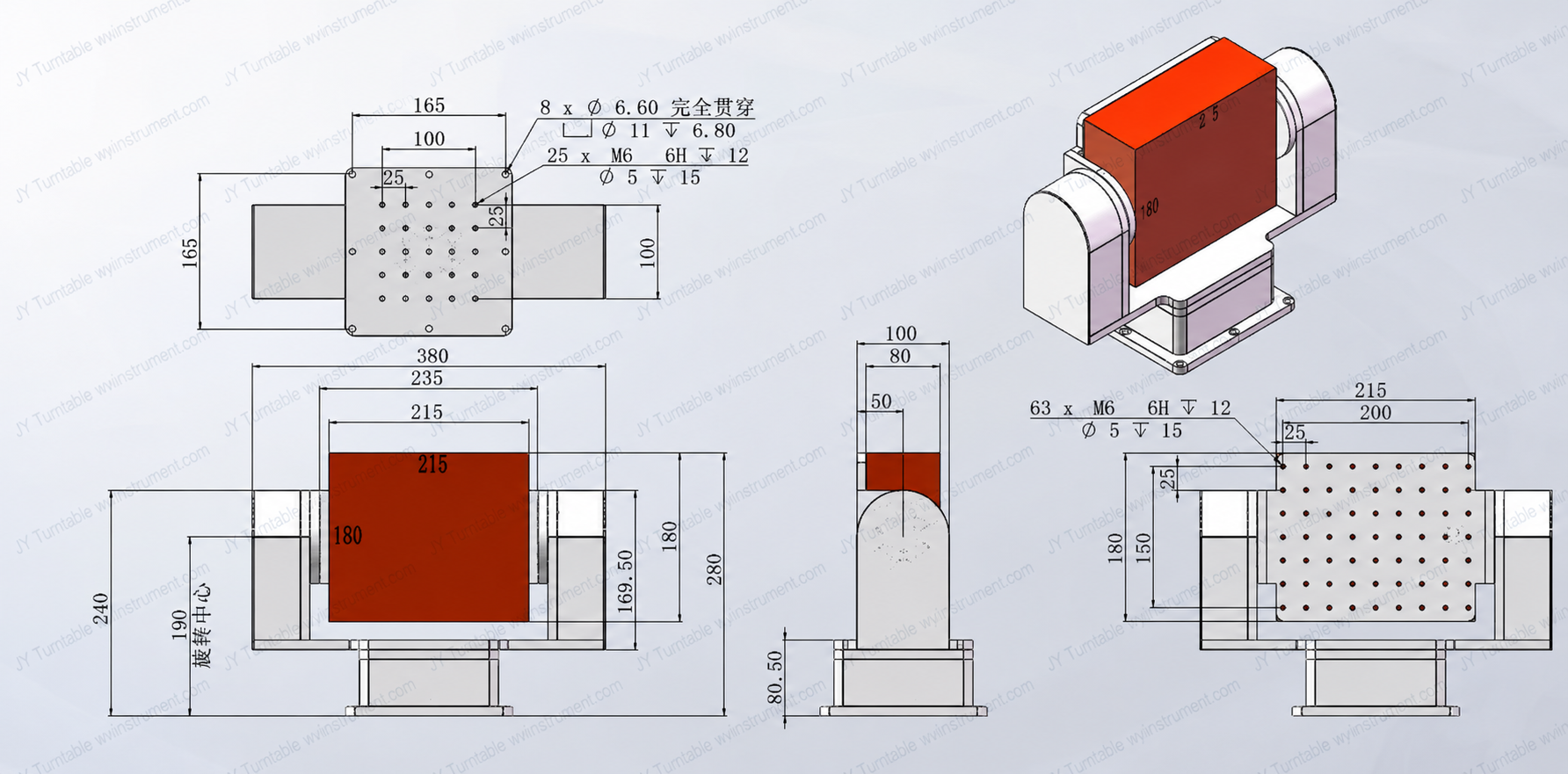

Overall Dimensions	380 x 280 x 100 mm
Power	Approx. 800 W
Load	1kg
Rated Speed	Pitch Axis: 300 rpm Azimuth Axis: 200 rpm (Subject to final production selection)
Positioning Accuracy	0.006°
Motor	Torque Motor × 2
Encoder	16-bit resolution, 65,536-count absolute encoder × 2 (Subject to final production selection)
Brake	Brake engaged when powered
Rotation Angle	Pitch Axis: ±90° Azimuth Axis: ±90°
Material	Aluminum Alloy
Surface Treatment	Black Anodizing

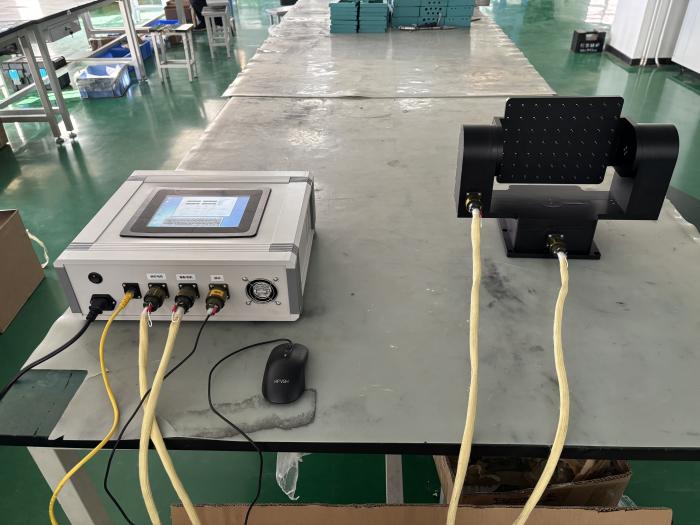

Control System	Control enclosure, connecting cables, control software, and secondary development documentation
