| Name: | Non Magnetic XYZ Positioning Stage with Rotary Adjustment DZXYZ300 | Manual Non Magnetic Stage |
|---|---|
Product Description
Non Magnetic XYZ Positioning Stage with Rotary Adjustment DZXYZ300 | Manual Non Magnetic Stage
with Rotary Adjustment / Manual XYZ Stage / Non Magnetic Rotary Stage
Youtube Demo: Non Magnetic XYZ Positioning Stage with Rotary Adjustment

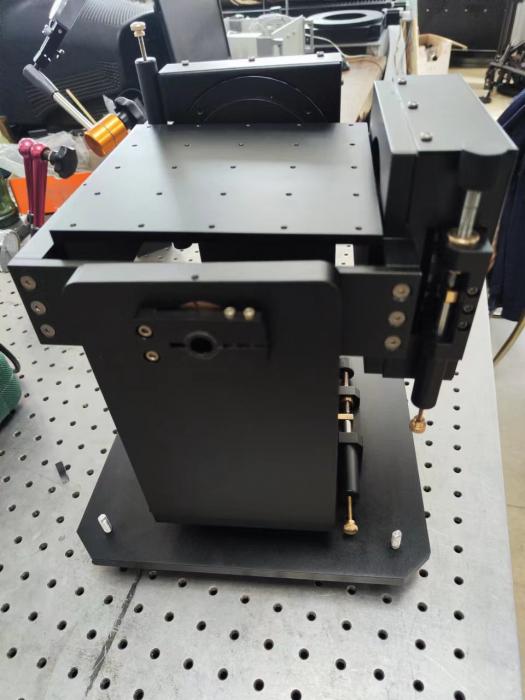

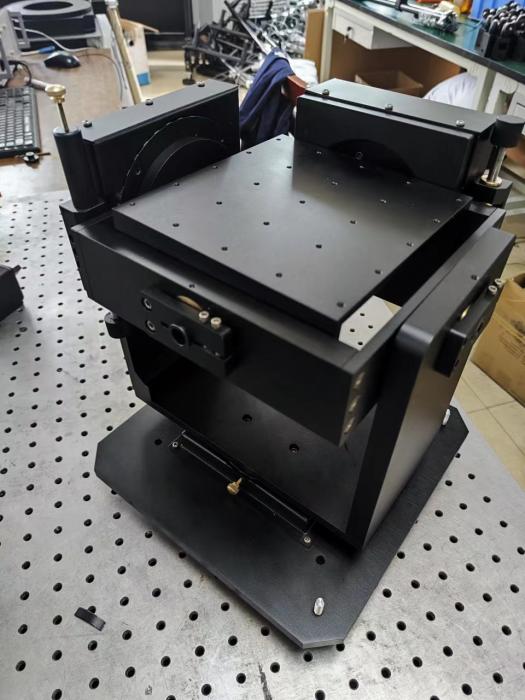

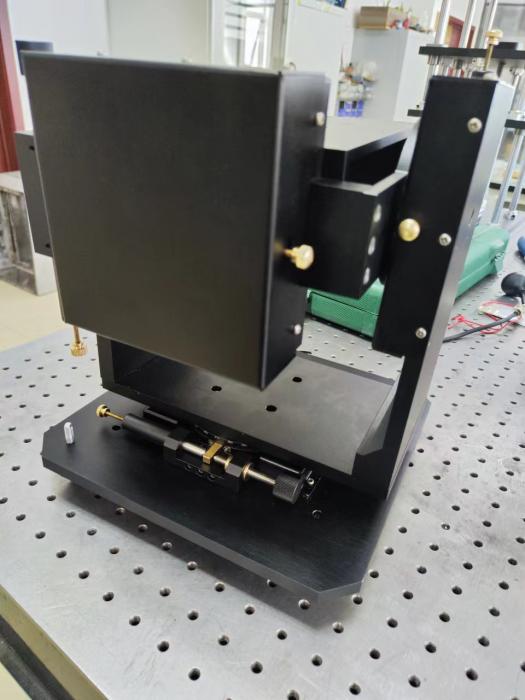

DZXYZ300 is a non magnetic manual XYZ positioning stage with rotary adjustment. It supports X/Y/Z coarse and fine positioning, 360° coarse rotation and 5° fine rotary adjustment, suitable for magnetic-sensitive experiments, laboratory testing, optical alignment and custom precision positioning applications.
Model Number | DZXYZ300 |

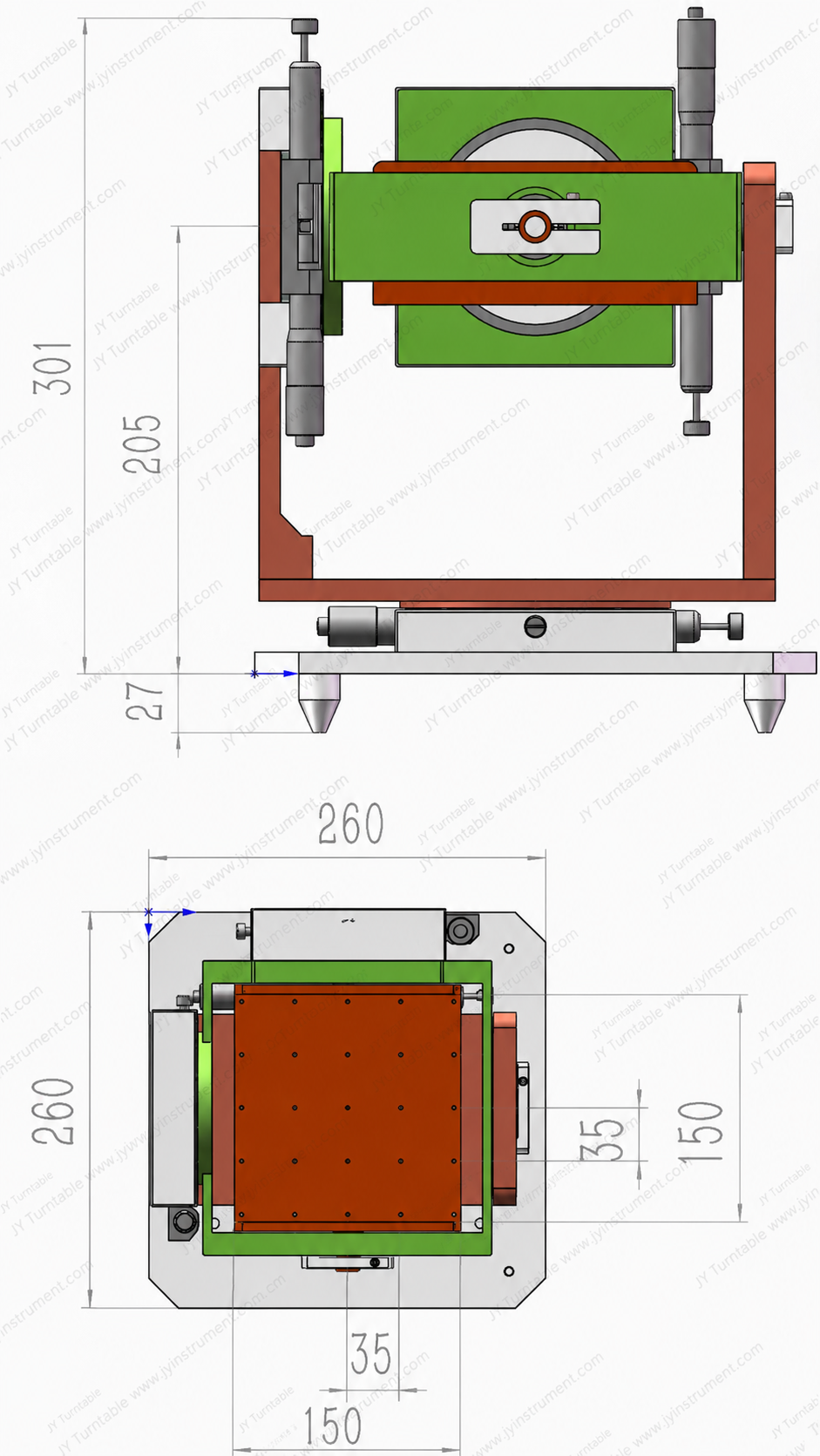

Dimension | 328*260*260mm |
Type of Drive | Manual |
Type of Adjust | Coarse and Fine(X, Y, Z) |
Angle Range | Coarse Turning 360 degree Fine Turning 5 degree |
Method of Adjustment | Coarse—lock—fine |
Material | Aluminum Coper Titanium |
Surface Treatment | Anodized |
Weight | 12 to 15kg |
Adjust Range of Foot | 0-5mm |
