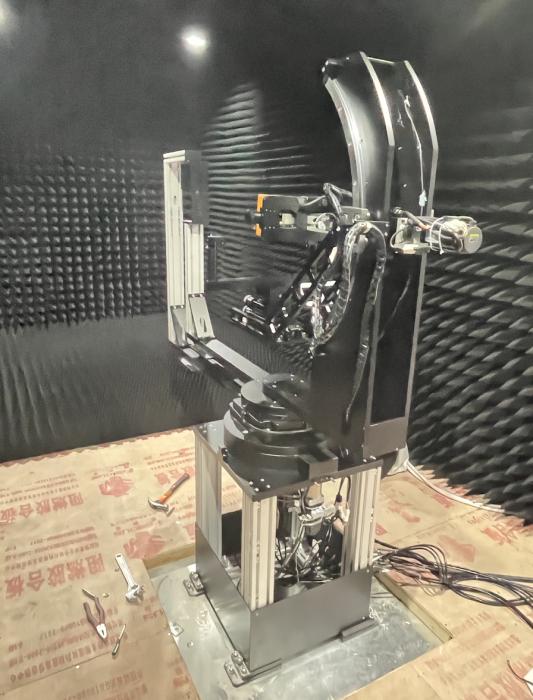

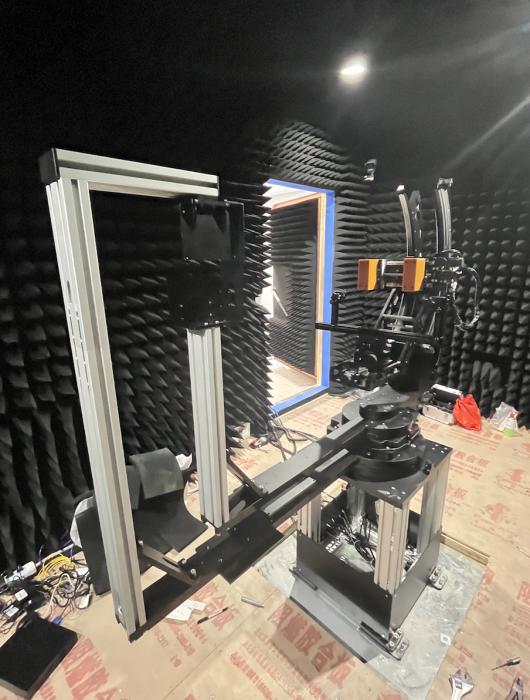

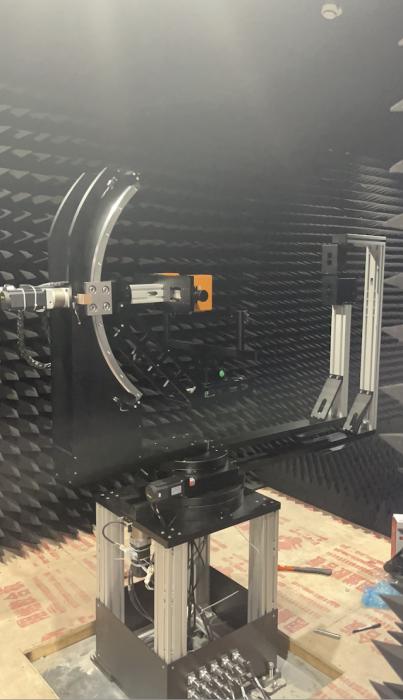

Automotive mmWave Radar Test Turntableis a custom 3-axis bumper radar test platform for ADAS radar sensor testing, automotive radar calibration and radar simulator alignment. The system provides concentric azimuth, elevation and polarization rotation, dual servo swing arms, bumper fixture adjustment, TTL trigger output and PC software control.

Youtube Demo: Automotive mmWave Radar Test Turntable

Model: DZDUT53

Application: Automotive mmWave radar testing, ADAS radar sensor testing, bumper radar testing

Motion Axes: 5 servo-controlled axes + manual adjustment

Radar Turntable: Azimuth, elevation and polarization axes

Azimuth Range: ±180°

Elevation Range: ±40°

Polarization Range: ±180°

Repeatability: ±0.1°

Speed Range: 0.1–50°/s, recommended normal speed within 30°/s

Swing Arms: 2 independent servo swing arms

Swing Arm Range: ±85°

Radar Fixture Range: 40–180 mm

Bumper Load: <2 kg

Radar Simulator Load: <10 kg × 2

Communication: Ethernet / RS232

Trigger: TTL 5V, BNC interface

Control: PC software + handheld motion controller
